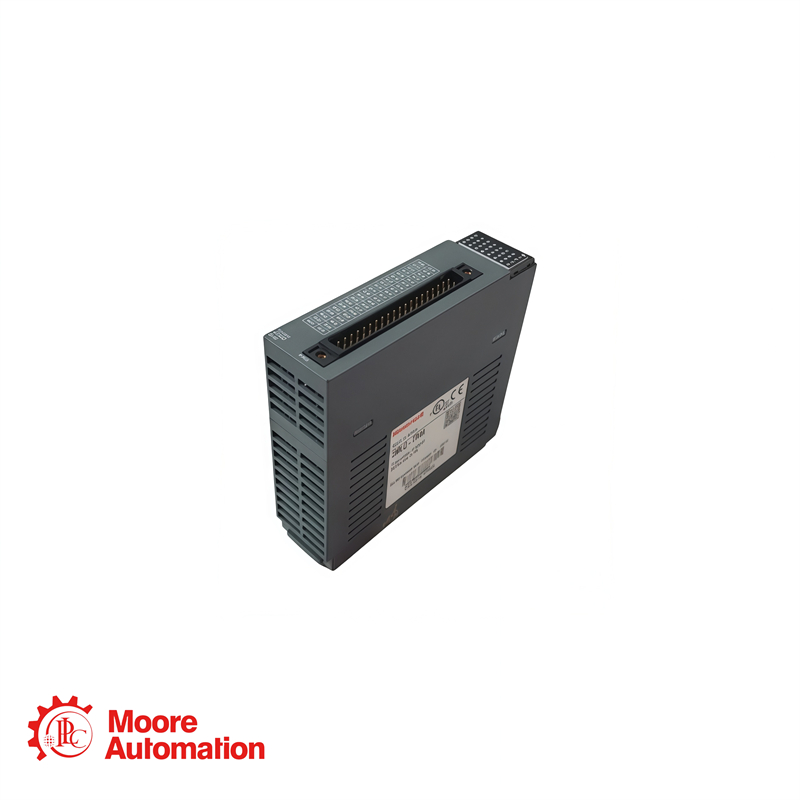

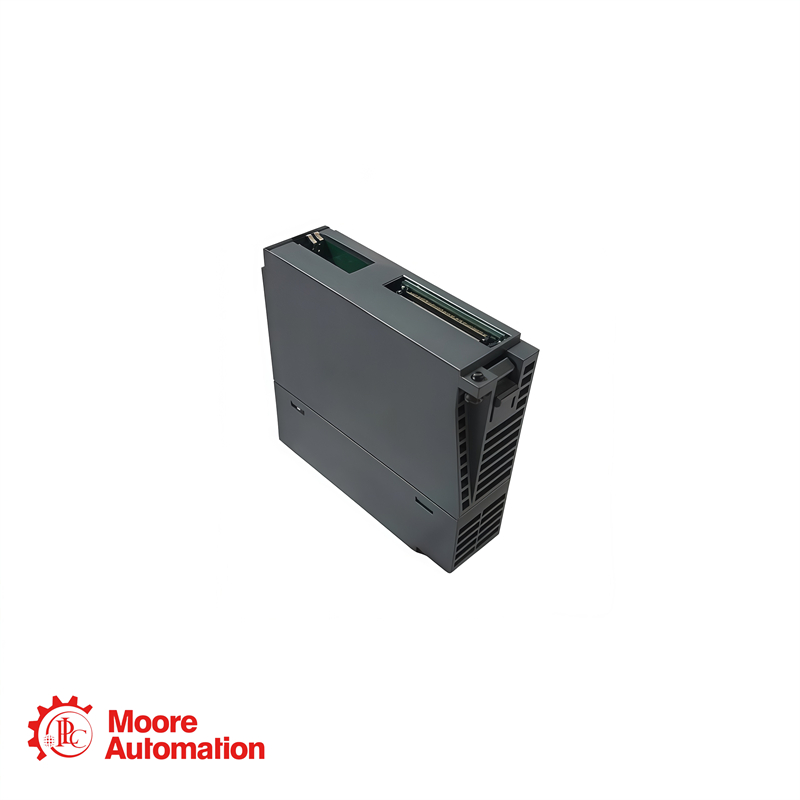

Honeywell 2MLQ-TR4A-CC Digital Output Module

Sales manager：Channy

»Email : sales5@mooreplc.com

»Phone/WhatsApp : +86 15359408275

Product information

Warranty: 12-month

Output Points: 32 points
Output Type: Transistor Sink
Rated Load Voltage: DC 12/24 V
Operating Voltage Range: DC 10.2 – 26.4 V
Maximum Load Current: 0.5 A/point; 4 A/common terminal
Shutdown Leakage Current: ≤0.1 mA
On-State Voltage Drop: ≤0.3 V
Maximum Surge Current: 4 A/10 ms
Response Time: ≤0.5 ms (resistive load, rated voltage)
Surge Absorption: Zener Diode
Fuse: 2×4 A fast-blow, non-replaceable, fuse alarm + LED
Isolation: Channel-backplane 560 Vrms
External Power Terminals: Removable 40-pin spring terminals
Operating temperature: 0 – 55 °C
Storage temperature: –25 – +75 °C
