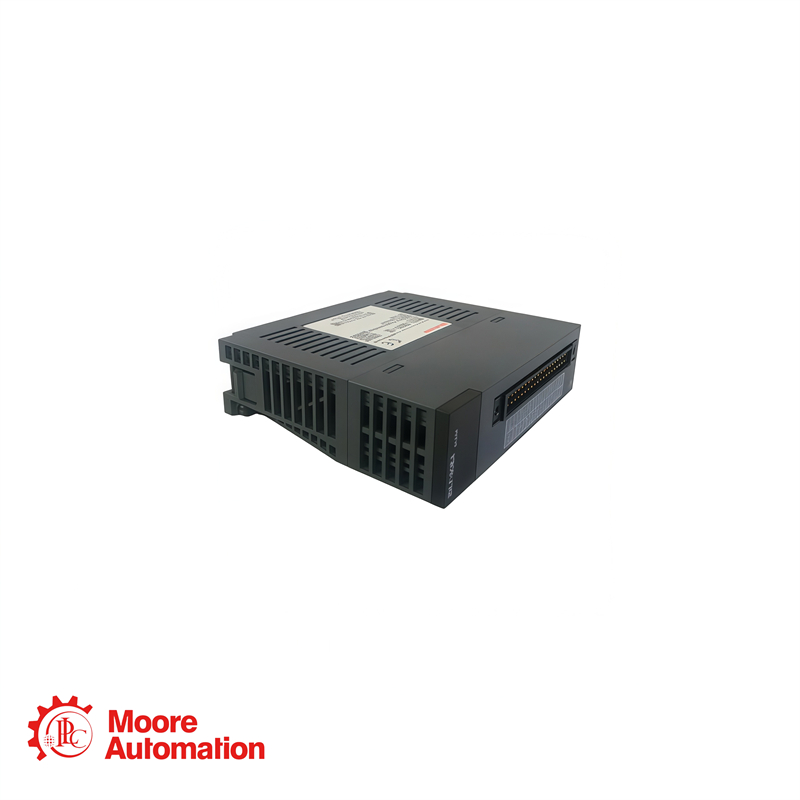

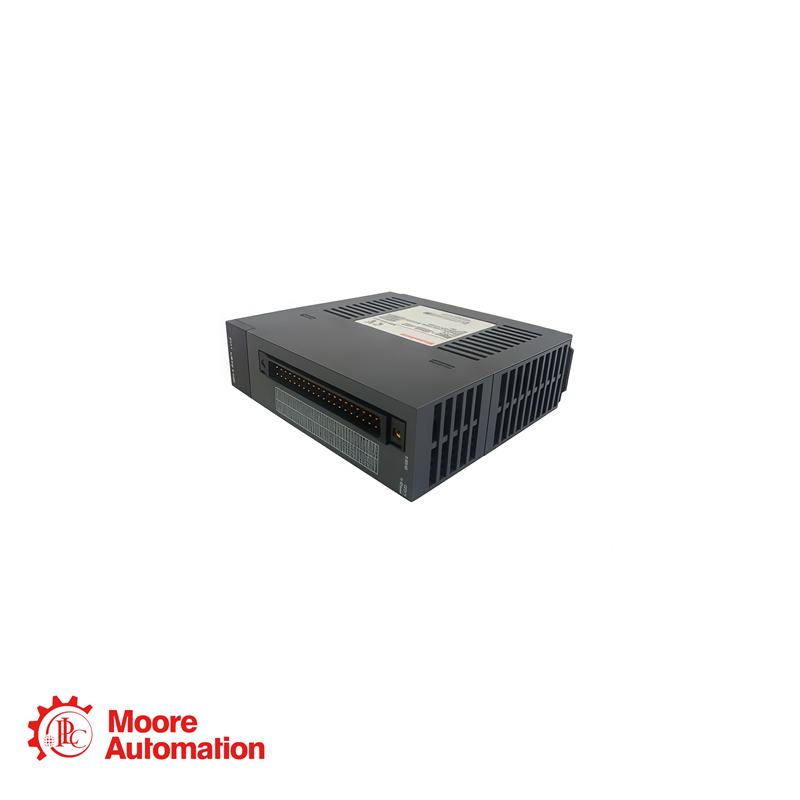

HONEYWELL 2MLF-SOEA Digital Input Module

Product Description

Brand: HONEYWELL

Part number: 2MLF-SOEA

Description: Digital Input Module

Country of origin: USA

Warranty: 1 Year

Availability: In Stock
Shipping Port: Xiamen, China

Number of inputs: 32, single-ended with a common negative pole
Input signal: Dry contact or 24 V DC active signal
Rated input voltage: 24 V DC (+10% / -15%)
Rated input current: Approximately 4 mA/point
Input impedance: Approximately 5.6 kΩ
Event resolution: 1 ms (module has a built-in 1 ms timestamp)
Buffer capacity: 1 Mbit (not retained during power failure)
Isolation method: Optical coupling (field ↔ system)
Isolation withstand voltage: AC 560 V rms / 3 cycles (at an altitude of 2000 m)
Backplane 5 V consumption: ≤ 180 mA
External power supply: No external power supply required
Operating temperature: -25 … +70°C
Storage temperature: -40 … +85°C
Relative humidity: 5–95% RH (non-condensing)
External connection: 18-position removable screw terminal block (M3×6)
Applicable wire width: 0.3–0.75 mm mm² stranded wire
Mounting method: 35 mm DIN rail
