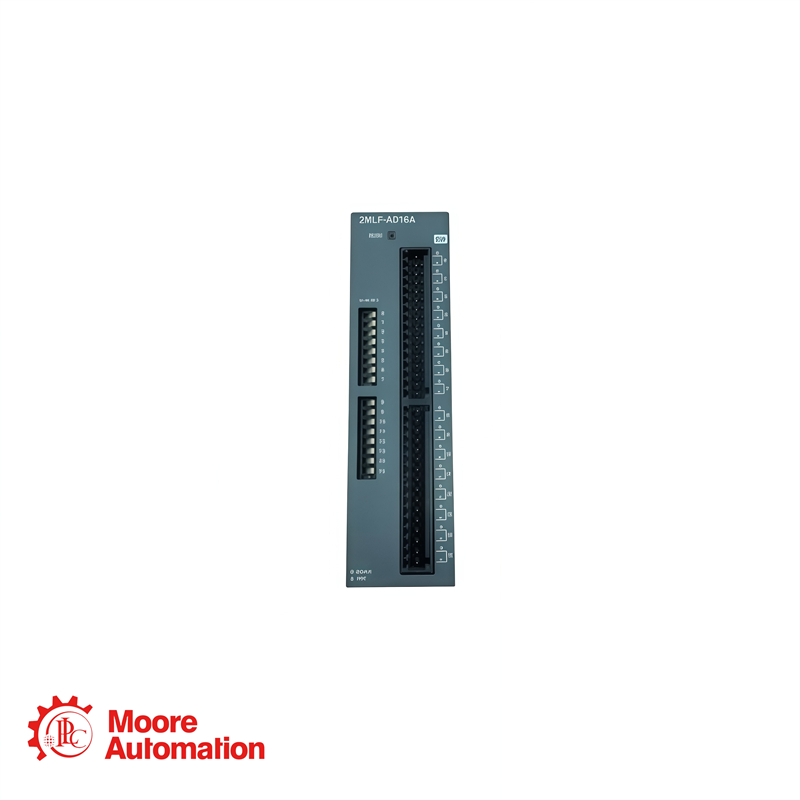

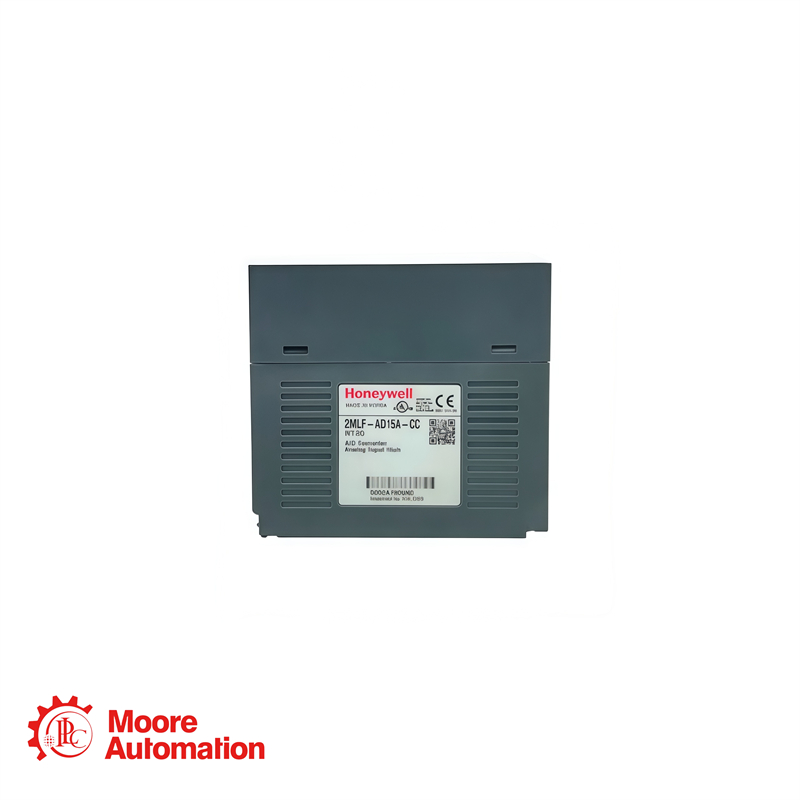

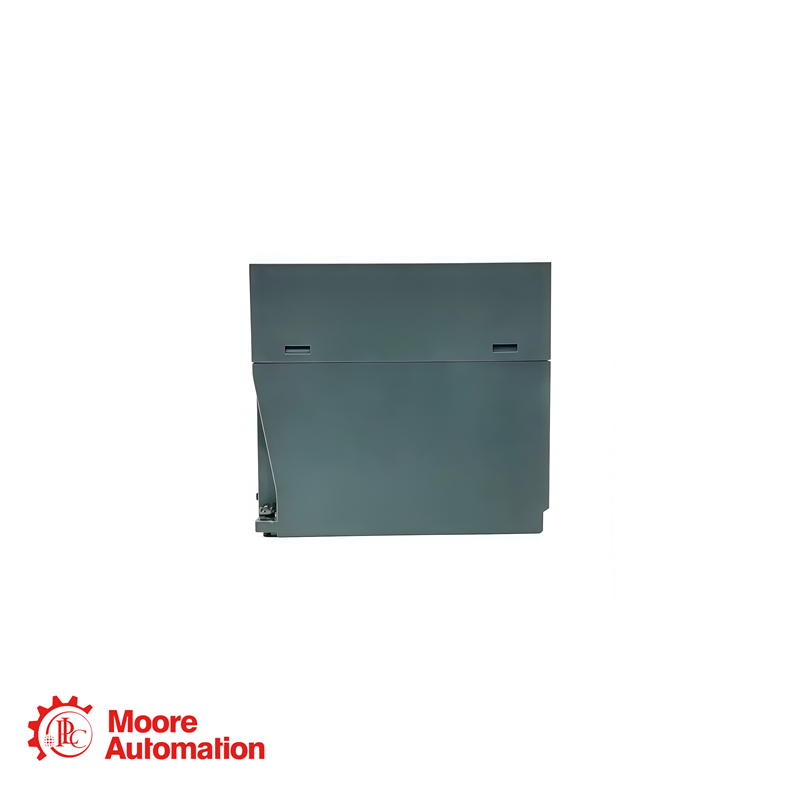

Honeywell 2MLF-AD16A Analog Input Module

Basic Information

Model Number: 2MLF-AD16A

Manufacturer: Honeywell
Product Name: Analog Input Module
Availability: In Stock
Product Origin: USA
Shipping Port: Xiamen, China

Condition: 100% Original

Warranty: 1 Year

Input Channels: 16 channels
Input Impedance: Voltage ≥ 1 MΩ; Current 250 Ω
Resolution: 16 bits (selectable: 0–16,000 / ±8,000 / Exact value / Percentage)
Conversion Speed: 500 µs/channel (8 ms scan for all 16 channels)
Accuracy: ±0.2% F.S. (25 ±5°C); ±0.3% F.S. (0–55°C)
Temperature Drift: ±5 ppm/°C (typical)
Wire Break Detection: Supports 1–5 V / 4–20 mA wire break alarms, LED Dual indication of registers
Isolation: Optocoupler isolation between field and system sides, non-isolated between channels
Isolation withstand voltage: AC 560 V rms / 3 cycles (at an altitude of 2000 m)
Backplane 5 V current consumption: 330 mA
External power supply: No external power supply required
Operating temperature: -25 … +70°C
Storage temperature: -40 … +85°C
Relative humidity: 5–95% RH (non-condensing)
External connection: Removable 18-position screw terminal (M3 x 6)
Applicable wire: 0.3–0.75 mm² stranded wire
Mounting method: 35 mm DIN rail (MasterLogic-200 baseplate)
