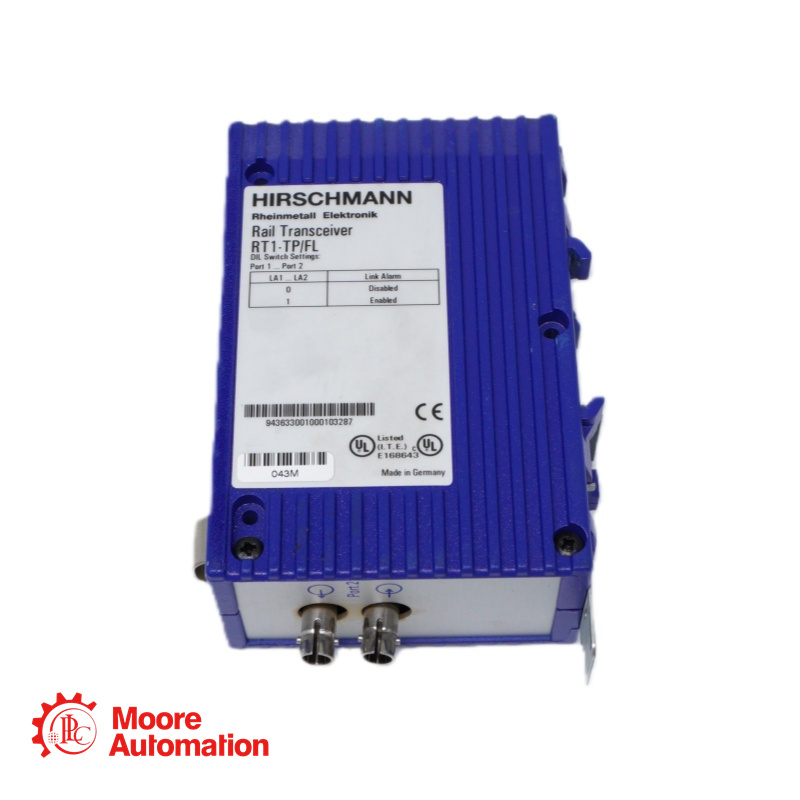

HIRSCHMANN RT1-TP/FL Ethernet Media Converter

Sales Manager:

Phone/WhatsApp:

Email:

Frida

+86 15359408275

sales5@mooreplc.com

Product Introduction

Product Model:RT1-TP/FL

Type: Ethernet Media Converter

Manufacturer: HIRSCHMANN

Shipment: DHL, UPS, Fedex, and TNT

Description:
The RT1-TP/FL is an industrial-grade Ethernet media converter designed to connect 10BASE-T twisted pair networks with 10BASE-FL multimode fiber optic networks, enabling extended communication distances up to 3.4 km. Featuring robust construction with DIN rail mounting, redundant 24 V DC power support, and comprehensive diagnostic LEDs, it ensures reliable operation in harsh industrial environments.

Specification:

Operating Voltage: 24 V DC (-25% to +30%)
Current Consumption at 24 V DC: Maximum 105 mA
Redundancy Function: Redundant 24 V power supply
Network Cable Length (Twisted Pair, TP): 0 – 100 m
Network Cable Length (Multimode Fiber, 50/125 µm): 0 – 2600 m (11 dB link budget at 850 nm, attenuation 3 dB/km, 3 dB reserve, bandwidth 400 MHz × km)
Network Cable Length (Multimode Fiber, 62.5/125 µm): 0 – 3400 m (14 dB link budget at 850 nm, attenuation 3.2 dB/km, 3 dB reserve, bandwidth 200 MHz × km)
Cascadability (Propagation Equivalent): 100 m
Path Variability Value: 1 BT
Mounting: DIN Rail 35 mm
Operating Temperature: 0 °C to +60 °C
Storage/Transport Temperature: -25 °C to +75 °C
Relative Humidity (Non-condensing): 10% to 95%
MTBF: 136.5 years (per MIL-HDBK 217F, Gb 25 °C)
Shock Resistance (IEC 60068-2-27): 15 g, 11 ms duration, 18 shocks
Vibration Resistance (IEC 60068-2-6): 1 mm, 2 Hz – 13.2 Hz, 90 min; 0.7g, 13.2 Hz – 100 Hz resonance, 90 min; 3.5 mm, 3 Hz – 9 Hz, 10 cycles, 1 octave/min; 1g, 9 Hz – 150 Hz, 10 cycles, 1 octave/min
