GE MARK VIE · TMR PRIMARY TURBINE PROTECTION

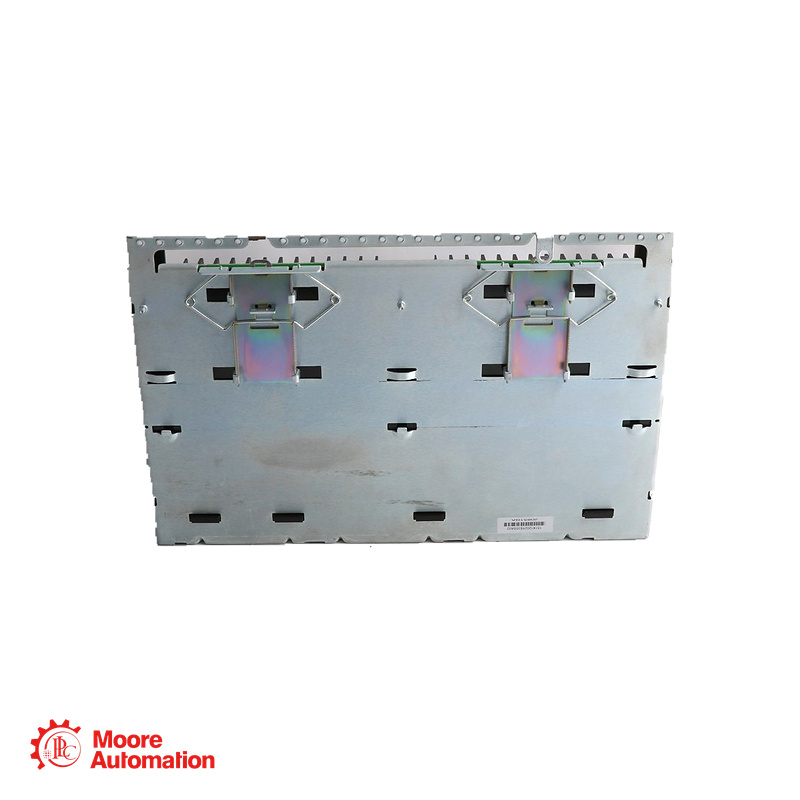

IS230TNTRH1C

IS230TNTRH1C is a GE Mark VIe TMR primary turbine-protection assembly with three PTUR I/O packs and an IS200TTURH1C terminal board. It interfaces turbine speed, flame detection and generator synchronizing signals.

PRODUCT TYPEPRIMARY TURBINE PROTECTION DIN RAIL MODULE
PLATFORMMark VIe
I/O PACKS3 × PTUR
REDUNDANCYTMR
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● PRIMARY TURBINE PROTECTION DIN RAIL MODULE
MARK VIE

IS230TNTRH1C

PRIMARY TURBINE PROTECTION DIN RAIL MODULE

MARK VIE · TMR · THREE PTUR PACKS + TTURH1C

MODULE ROLE

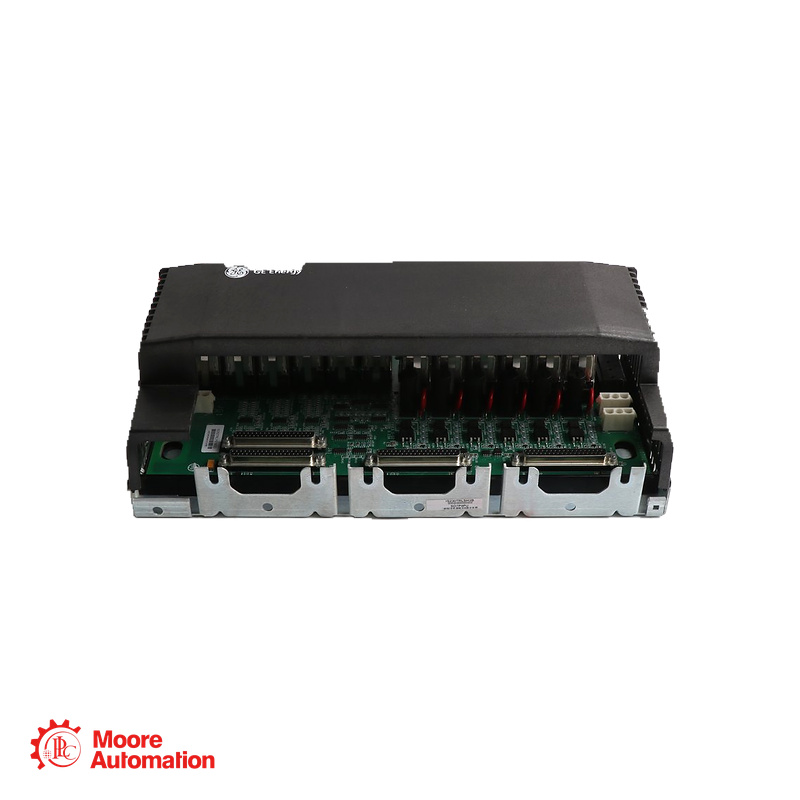

IS230TNTRH1C is a TMR DIN-rail primary turbine-protection module with three PTUR packs and an IS200TTURH1C terminal board.
LONG DESCRIPTION
IS230TNTRH1C provides turbine speed, flame and shaft-monitoring interfaces together with generator/bus voltage sensing and the main breaker synchronizing interface. The three PTUR packs form the R, S and T signal paths.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS230TNTRH1C Reference Is Structured

IS
Issuing organizationGE, Salem, Virginia
2
Substance codeLegacy non-RoHS designation
30
Assembly levelCircuit assemblies mounted on a base
TNTR
Module functionPrimary turbine protection assembly
H
Technology codeSurface-mount components included
1
Assembly variantTTURH1C terminal-board arrangement
C
Compatibility versionBackward-compatibility version C
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS230TNTRH1C PRIMARY TURBINE PROTECTION DIN RAIL MODULE

Engineering data at a glance

Click “+” to expand more specifications.

I/O PACKS3 × PTUR
SPEED INPUTS4 per PTUR
FLAME INPUTS8 sensors
REDUNDANCYTMR
Three PTUR packs, four speed inputs per pack, eight flame inputs and a TTURH1C turbine terminal board.
TMR assembly configuration Module IS230TNTRH1C uses TTURH1C and three PTUR packs. Generator/bus voltage, flame and main-breaker functions belong to this TTUR arrangement.
GENERAL INFORMATION −
BrandGE
Part numberIS230TNTRH1C
Product typePrimary Turbine Protection DIN Rail Module
I/O packsThree PTUR packs
Terminal boardIS200TTURH1C
RedundancyTriple modular redundant (TMR)
TURBINE SIGNAL INPUTS ＋
Speed pickupsFour pulse-rate inputs per PTUR
Flame sensorsEight inputs
Shaft monitoringShaft voltage and current signals
SYNCHRONIZING & CONNECTIONS ＋
Voltage sensingGenerator and bus potential-transformer inputs
Breaker interfaceMain breaker close circuit
Pack connectionThree DC-62 terminal-board connectors
NetworkPTUR Ethernet I/O communication
MountingDIN-rail assembly
PRIMARY TURBINE INTERFACE ＋
Signal path: Three PTUR packs interface with TTURH1C for TMR acquisition and control. Speed inputs are separate for R, S and T; other supported turbine inputs fan to the three packs.
Source: GEZ-S2029, Mark VIe I/O Modules table, page 5; GEH-6721Q Volume II, PTUR and TTURH1C; GEH-6721 Volume I, Part Numbering Convention.
FAQ

Questions Buyers Ask Most

What is included in IS230TNTRH1C?＋

IS230TNTRH1C includes three PTUR I/O packs and an IS200TTURH1C terminal board on a DIN-rail assembly.

Which redundancy arrangement does IS230TNTRH1C use?＋

IS230TNTRH1C is the TMR assembly, with separate R, S and T PTUR packs.

How are speed pickups connected to IS230TNTRH1C?＋

IS230TNTRH1C supports a separate set of four speed inputs for each PTUR in the TMR arrangement.

Does IS230TNTRH1C interface flame detectors?＋

IS230TNTRH1C supports eight flame sensor inputs through the TTURH1C and PTUR interface.

What synchronizing signals does IS230TNTRH1C handle?＋

IS230TNTRH1C interfaces generator and bus voltage signals and the main breaker close circuit.

How does IS230TNTRH1C communicate with the controller?＋

IS230TNTRH1C exchanges acquired signals and control commands through the PTUR Ethernet I/O connections.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS230TNTRH1C

Official manufacturer-manual PDF status for GE IS230TNTRH1C.

Official manual PDF status

A direct manufacturer-hosted instruction-manual PDF covering IS230TNTRH1C was not located in the public documentation checked. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEZ-S2029, Mark VIe I/O Modules table, page 5; GEH-6721Q Volume II, PTUR and TTURH1C; GEH-6721 Volume I, Part Numbering Convention.

GE MARK VIE TURBINE-PROTECTION RELATIONSHIP

How IS230TNTRH1C Interfaces Turbine Signals

GE is the manufacturer brand; GE Mark VIe is the product family; and IS230TNTRH1C is the primary turbine protection din rail module for TMR primary turbine protection and synchronizing.

GE · BRAND
GE Mark VIePrimary Turbine Protection DIN Rail Module
SYSTEM ROLE

Primary Turbine Protection DIN Rail Module

Acquires turbine signals through three PTUR packs and TTURH1C.

MODULE / CONFIGURATION

3 PTUR packs · TMR

Each PTUR receives a separate group of four speed signals.

PACK & TERMINAL-BOARD INTERFACE

IS230TNTRH1C · Primary Turbine Protection DIN Rail Module

Three PTUR packs connect directly to the TTURH1C terminal-board connectors.

System relationship: The TTURH1C field interface connects turbine and synchronizing signals to PTUR; the packs exchange data with the Mark VIe controller over Ethernet.
APPLICATION AREAS

Application map for IS230TNTRH1C

Turbine Speed InputsAcquire pulse-rate pickup signals
Flame DetectionInterface eight flame sensors
TMR TURBINE PROTECTION & SYNCHRONIZING IS230TNTRH1C IS230TNTRH1C · Primary Turbine Protection DIN Rail Module
Generator SynchronizingSense generator and bus voltage
TMR Control PathsUse three PTUR packs for R, S and T
