The GE IS210JPDHG1AC is a JPDH high-density DC power distribution module for Mark VIe control equipment
Marca :
GENúmero de parte :
IS210JPDHG1ACPeso :
0.32 kgDimensión :
29.2 × 13.0 × 2.7 cmPaís de origen :
USACódigo hs :
8537101190Descripción :
High-Density Power Distribution Module
Contact Below to Get Best Price
|
What You Need |
Recommended Action |
|
Price request |
|
|
Fast response |
|
|
Technical confirmation |
Send the complete part number and required quantity. |
|
Product inquiry |
Example: IS210JPDHG1AC |
Product Overview

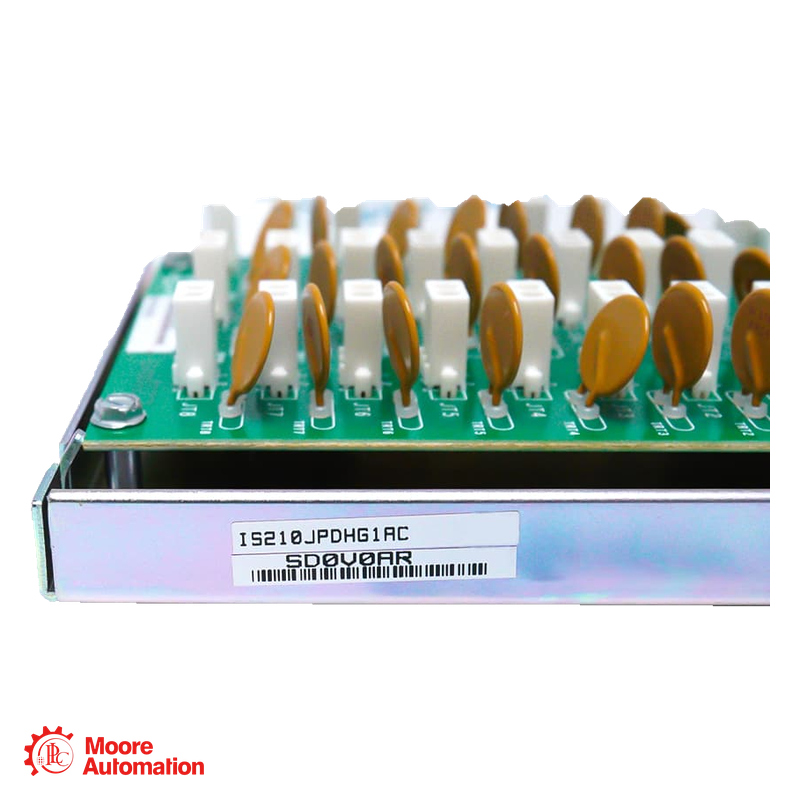

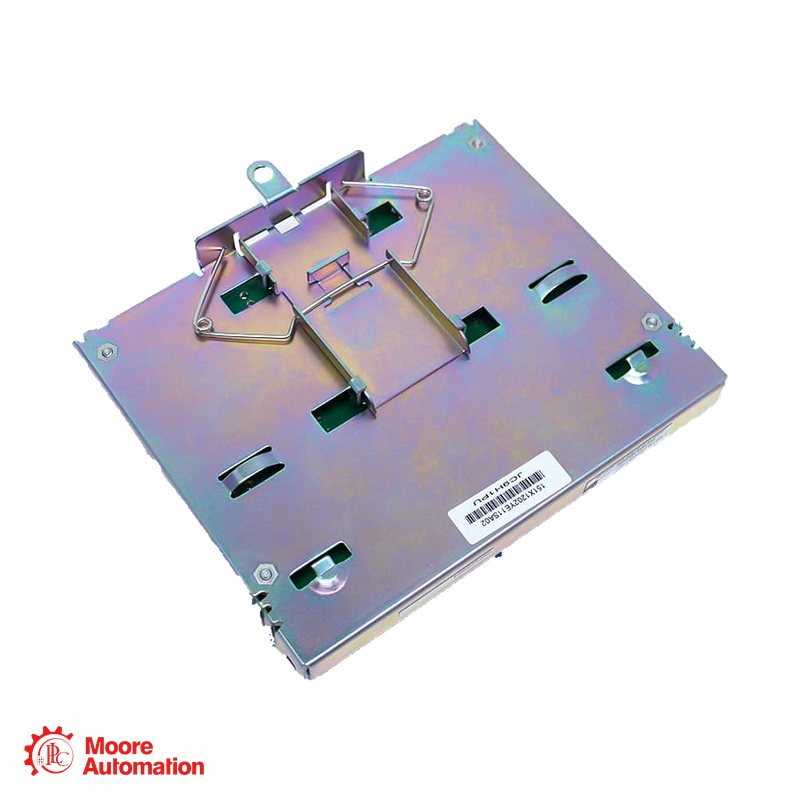

The GE IS210JPDHG1AC is a JPDH high-density DC power distribution module for Mark VIe control equipment. It distributes control power to up to 24 I/O modules and three Ethernet switches, bringing multiple power branches together in one module. GE’s JPDH design arranges the 24 I/O outputs in three groups of eight for R, S and T power feeds. The JPDH design also supports connecting additional JPDH boards when a control system requires more powered I/O modules. These are power-distribution functions; the module is not an Ethernet data switch.
Technical Specifications
|
Parameter |
Value |
|
Manufacturer |
GE |
|
Model Number |
IS210JPDHG1AC |
|
Module Function |
JPDH high-density DC power distribution |
|
Power Input Voltage |
22.5–28.6 VDC; nominal 24/28 VDC |
|
Maximum Input Current |
13 A DC |
|
I/O-Module Power Outputs |
24; eight each in the R, S and T groups |
|
I/O-Output Current |
Up to 0.8 A DC per output |
|
Ethernet-Switch Power Outputs |
3 |
|
I/O-Output Protection |
Individual PTC protection |
Key Highlights
• Distributes DC control power to up to 24 Mark VIe I/O modules
• Provides three additional power outputs for Ethernet switches
• Organizes I/O power across R, S and T groups of eight
• PTC protection on each I/O-module output circuit
• Supports daisy-chaining additional JPDH boards for larger I/O systems
Industries Served
• Turbine-based power generation
• Power-plant control systems
• Industrial control system integration
• Turbine-control equipment maintenance
Frequently Asked Questions
No.
Question
Answer
1
What does IS210JPDHG1AC do in a Mark VIe system?
It distributes DC control power to I/O modules and provides power outputs for Ethernet switches.
2
How many I/O modules can one JPDH power?
GE describes 24 I/O-module output circuits, arranged as eight outputs each for the R, S and T feeds.
3
How are the I/O power outputs protected?
Each I/O-module output circuit has its own PTC protection device.
4
Can JPDH power distribution be expanded?
Yes. GE describes a daisy-chain arrangement using additional JPDH boards to supply more I/O modules.
5
Does JPDH handle Ethernet communication?
No. It supplies power to three Ethernet switches; the switches handle the network communication.
