 /GE IS200VTCCH1C Mark VI Thermocouple Input Board

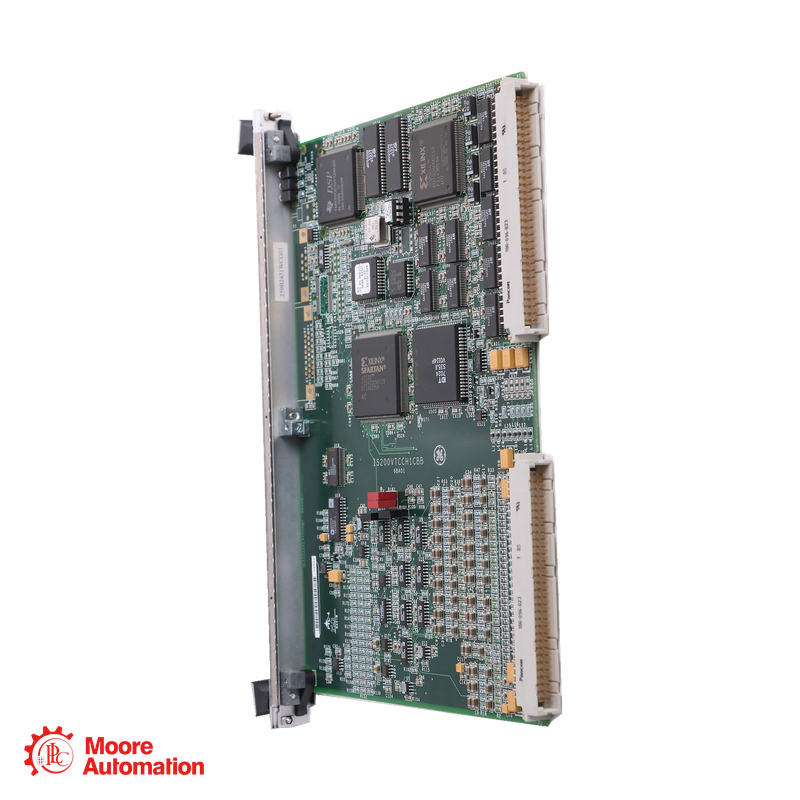

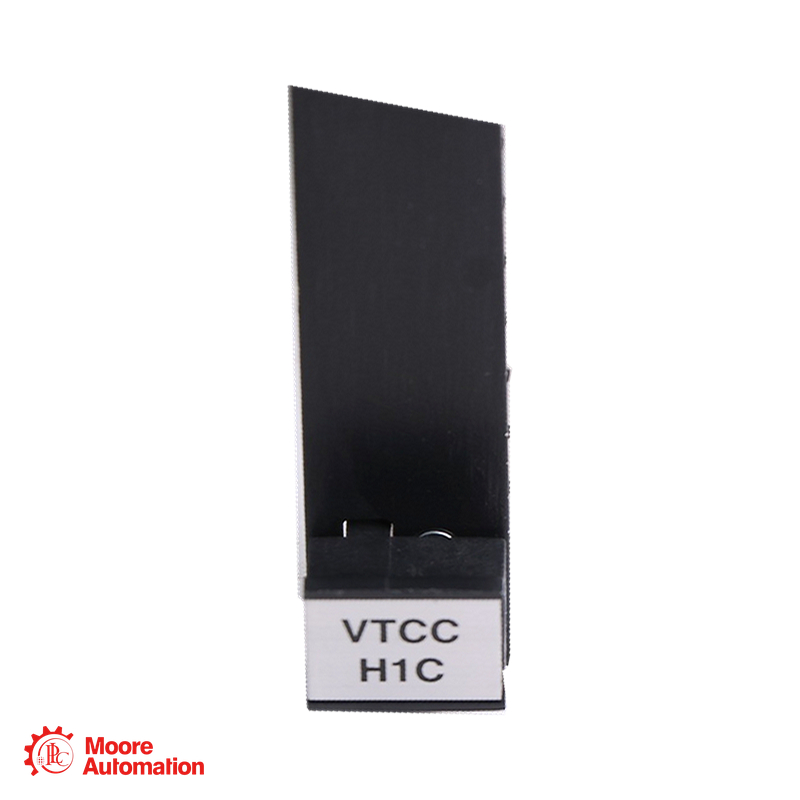

GE IS200VTCCH1C Mark VI Thermocouple Input Board
GE IS200VTCCH1C Mark VI Thermocouple Input Board
GE IS200VTCCH1C Mark VI Thermocouple Input Board

GE IS200VTCCH1C Mark VI Thermocouple Input Board

GE MARK VI · VTCC H1 THERMOCOUPLE INPUT

IS200VTCCH1C

IS200VTCCH1C is a GE Mark VI VTCC thermocouple-input processor board. The H1 configuration accepts twenty-four inputs for E, J, K, S and T thermocouples or millivolt signals over a −8 to +45 mV span.

PRODUCT TYPETHERMOCOUPLE INPUT BOARD
PLATFORMMark VI
INPUTS24 TC
TYPES5
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● THERMOCOUPLE INPUT BOARD
MARK VI

IS200VTCCH1C

THERMOCOUPLE INPUT BOARD

MARK VI · VTCCH1C · E / J / K / S / T INPUTS

MODULE ROLE
IS200VTCCH1C is the VTCCH1C thermocouple processor in a Mark VI VME rack. It converts field thermocouple signals and applies software linearization and cold-junction compensation using matched terminal boards.
LONG DESCRIPTION
IS200VTCCH1C accepts twenty-four thermocouple inputs through TBTC or DTTC terminals. The H1 input configuration supports E, J, K, S and T thermocouples, including grounded and ungrounded junctions. Converted input data passes over the VME backplane to VCMI and the controller. The H2 thermocouple types and wider millivolt span must not be substituted for the H1 configuration.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS200VTCCH1C Reference Is Structured

IS
Issuing organizationGE Power · Salem, Virginia
2
Material designationNon-RoHS part-number designation
00
Assembly levelPrinted circuit board assembly
VTCC
Board designationThermocouple input processor board
H
Technology codeContains surface-mount components
1
Assembly variantAssembly variant 1
C
Functional versionBackward-compatibility version C
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VI ↗
IS200VTCCH1C THERMOCOUPLE INPUT BOARD

Engineering data at a glance

Click “+” to expand more specifications.

INPUTS24 TC
TYPES5
ADC16 bit
CJ2 refs
VTCCH1 input types, span and conversion data from GEH-6421M Volume II, pages 385–391; CJ count shown for simplex TBTC.
Configuration note IS200VTCCH1C uses rack J3 and J4 for the two input groups. A simplex TBTCH1C terminal board provides two CJ reference locations; the TMR TBTCH1B board provides six. Two simplex DTTC boards can provide a total of twenty-four inputs.
GENERAL INFORMATION −
BrandGE
Part numberIS200VTCCH1C
Product typeThermocouple Input Board
Input channels24
H1 thermocouple typesE, J, K, S and T; grounded or ungrounded
H1 millivolt span−8 mV to +45 mV
TERMINAL-BOARD OPTIONS ＋
Simplex terminal boardTBTCH1C
TMR terminal boardTBTCH1B
Compact simplex terminalsTwo DTTC boards; 12 inputs per board
CONVERSION AND COMPENSATION ＋
A/D converter16 bit; better than 14-bit resolution
Sampling at 60 Hz operation120 samples per second on all inputs
Sampling at 50 Hz operation100 samples per second on all inputs
Cold-junction referenceTwo locations on simplex TBTC; six on TMR TBTC
Cold-junction accuracy1.1 °C (2 °F)
SENSOR WIRING ＋
Documented lead conditions: Thermocouples up to 300 m (984 ft) from cabinet; maximum 450 Ω two-way cable resistance
Source: GEH-6421M Volume II, VTCC Thermocouple Input, pages 385–391, distinguishes H1 and H2 input types and spans and documents conversion, sampling, wiring and CJ compensation.
FAQ

Questions Buyers Ask Most

Which thermocouple types does IS200VTCCH1C support?＋

IS200VTCCH1C is the VTCC H1 configuration supporting E, J, K, S and T thermocouples and millivolt inputs. Grounded or ungrounded thermocouple junctions can be used with the matched terminal-board interface.

What input span applies to IS200VTCCH1C?＋

IS200VTCCH1C uses the H1 hardware span of −8 mV to +45 mV. The wider −20 mV to +95 mV span and additional B, N and R thermocouple types belong to the H2 configuration.

How many inputs can IS200VTCCH1C process through compact DTTC terminals?＋

IS200VTCCH1C supports twenty-four inputs when connected to two DTTC boards, each with twelve thermocouple inputs and a 37-pin cable. DTTC is the simplex terminal option and must be matched to the VTCC processor arrangement.

How is cold-junction compensation provided for IS200VTCCH1C?＋

IS200VTCCH1C uses terminal-board cold-junction reference measurements for software compensation. The simplex TBTCH1C provides two locations and the TMR TBTCH1B provides six; GE specifies cold-junction temperature accuracy of 1.1 °C.

What input sampling rates are documented for IS200VTCCH1C?＋

IS200VTCCH1C samples all thermocouple inputs 120 times per second for 60 Hz operation or 100 times per second for 50 Hz operation. The converter is sixteen bit with better than fourteen-bit resolution.

Other Available Revisions for the IS200VTCCH1C＋

IS200VTCCH1C retains the H1C hardware form. H2 is a different input configuration supporting additional thermocouple types and a wider millivolt span; a replacement must match the configured input group and terminal-board arrangement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200VTCCH1C

Official manufacturer-manual PDF status for GE IS200VTCCH1C.

Official manual PDF status

A direct GE-hosted instruction-manual PDF covering IS200VTCCH1C was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEH-6421M Volume II, VTCC Thermocouple Input, pages 385–391, distinguishes H1 and H2 input types and spans and documents conversion, sampling, wiring and CJ compensation.

GE MARK VI SYSTEM RELATIONSHIP

How IS200VTCCH1C Fits Mark VI

GE is the manufacturer brand; GE Mark VI is the product family; and IS200VTCCH1C is the Thermocouple Input Board for Mark VI thermocouple temperature acquisition.

GE · BRAND
GE Mark VIThermocouple Input Board
SYSTEM ROLE

Thermocouple Input Board

Converts thermocouple and millivolt inputs into temperature data with software linearization and CJ compensation.

SIGNAL INTERFACES

Thermocouple · Millivolt signals

The H1 input group handles E, J, K, S and T sensors over the documented −8 to +45 mV hardware span.

VME TEMPERATURE INPUT

IS200VTCCH1C · Thermocouple Input Board

TBTC or DTTC terminals connect the two input groups to the VTCC processor through rack J3 and J4.

System relationship: VTCC transfers converted thermocouple readings through the Mark VI VME backplane to VCMI and the controller.
APPLICATION AREAS

Application map for IS200VTCCH1C

Turbine Temperature AcquisitionRead the documented H1 thermocouple types in turbine-control applications
Thermocouple LinearizationConvert individual thermocouple signals using the configured sensor curve
MARK VI TEMPERATURE INPUT IS200VTCCH1C IS200VTCCH1C · Thermocouple Input Board
Cold-Junction CompensationCompensate temperature readings using the terminal-board references
Millivolt MeasurementAcquire configured inputs within the H1 millivolt span
