GE MARK VIE · SIMPLEX THERMOCOUPLE INPUT TERMINAL BOARD

IS200STTCH2A

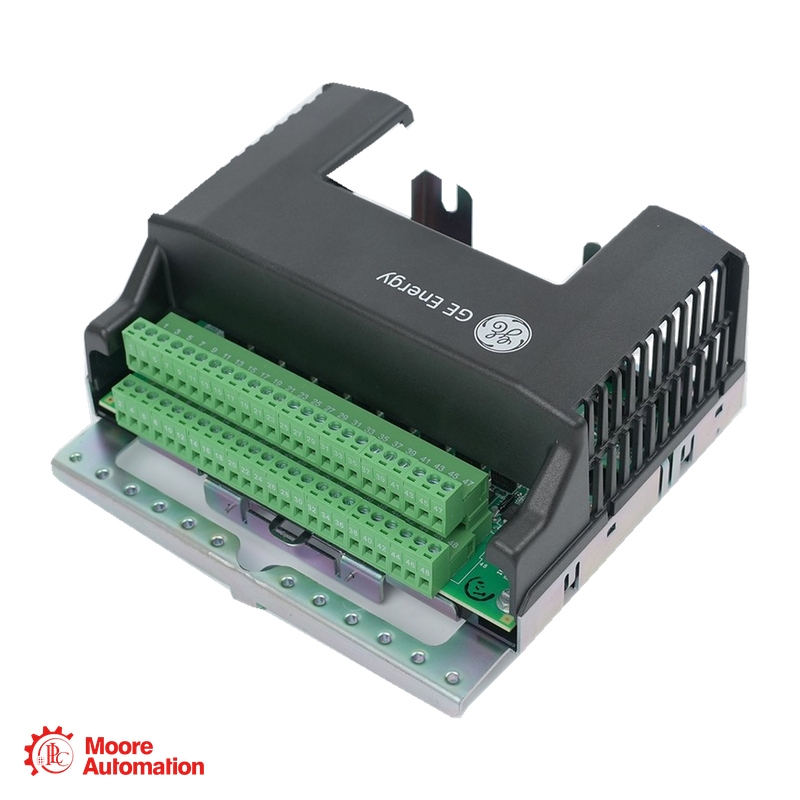

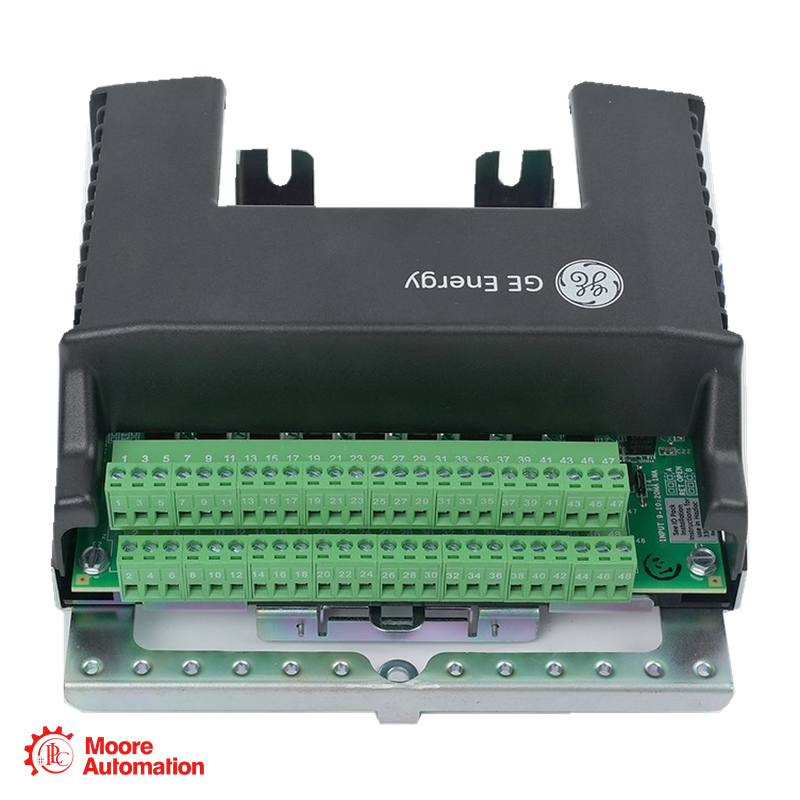

IS200STTCH2A is a GE Mark VIe simplex thermocouple input terminal board with twelve channels. GEH-6721 documents thermocouple and millivolt inputs with a PTCC I/O pack; confirm the complete H2A revision, PTCC version and sensor type before replacement.

PRODUCT TYPESIMPLEX THERMOCOUPLE INPUT TERMINAL BOARD
PLATFORMMark VIe
CHANNELS12 thermocouple inputs
FUNCTIONThermocouple & mV input
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● SIMPLEX THERMOCOUPLE INPUT TERMINAL BOARD
MARK VIE

IS200STTCH2A

SIMPLEX THERMOCOUPLE INPUT TERMINAL BOARD

MARK VIE · SIMPLEX THERMOCOUPLE INPUT · PTCC

MODULE ROLE
IS200STTCH2A is a simplex thermocouple input terminal board for GE Mark VIe systems. It provides twelve thermocouple or millivolt input channels for a PTCC I/O pack.
LONG DESCRIPTION
IS200STTCH2A supports thermocouple types E, J, K, S and T with PTCCH1, while PTCCH2 additionally supports B, N and R. The documented millivolt spans are -8 to +45 mV for PTCCH1 and -20 to +95 mV for PTCCH2; verify the installed pack before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS200STTCH2A Reference Is Structured

IS
Manufacturer codeGE Industrial Systems board identifier
200
Assembly levelBase-level printed wiring board
STTC
Functional acronymSimplex Thermocouple terminal board
H2
Hardware groupH2 terminal-board version
A
Functional revisionPrimary functional revision field
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS200STTCH2A SIMPLEX THERMOCOUPLE INPUT TERMINAL BOARD

Engineering data at a glance

Click “+” to expand more specifications.

CHANNELS12
INPUTSThermocouple & mV
I/O PACKPTCC
TEMPERATURE-30 to +65°C
GEH-6721 identifies IS200STTCH2A as a simplex thermocouple input terminal board with twelve thermocouple or millivolt channels for a PTCC I/O pack.
Replacement match Verify the complete model IS200STTCH2A, complete H2A revision, PTCCH1 or PTCCH2 pack, thermocouple type, millivolt span and field wiring before replacement.
GENERAL INFORMATION −
BrandGE
Part numberIS200STTCH2A
Product typeSimplex Thermocouple Input Terminal Board
Product familyGE Mark VIe terminal boards
System roleSimplex thermocouple and mV input termination
PlatformMark VIe control system
BOARD IDENTIFICATION ＋
Catalog familyIS200 base-level terminal-board family
Functional acronymSTTC · Simplex Thermocouple terminal board
Revision checkMatch H2A and the installed PTCC pack
THERMOCOUPLE INPUT CHARACTERISTICS ＋
Input channels12
PTCCH1 sensor typesE, J, K, S and T
PTCCH2 sensor typesE, J, K, S, T, B, N and R
Millivolt spans-8 to +45 mV or -20 to +95 mV
Operating temperature-30 to +65°C
REVISION & SENSOR CHECK ＋
Confirm before replacement: complete H2A revision, PTCC pack version, thermocouple type and field wiring
Source: GEH-6721 identifies IS200STTCH2A as a simplex thermocouple input terminal board with twelve thermocouple or millivolt channels.
FAQ

Questions Buyers Ask Most

What is the role of IS200STTCH2A?＋

IS200STTCH2A is a simplex thermocouple input terminal board that provides twelve thermocouple or millivolt channels in Mark VIe.

How many channels are provided on IS200STTCH2A?＋

IS200STTCH2A provides twelve thermocouple or millivolt input channels.

Which thermocouple types can be used with IS200STTCH2A?＋

IS200STTCH2A supports E, J, K, S and T with PTCCH1; PTCCH2 additionally supports B, N and R.

What millivolt spans are documented for IS200STTCH2A?＋

IS200STTCH2A supports -8 to +45 mV with PTCCH1 and -20 to +95 mV with PTCCH2.

What should be checked before replacing IS200STTCH2A?＋

IS200STTCH2A requires confirmation of the complete H2A revision, PTCCH1 or PTCCH2 pack, sensor type and field wiring.

Are other revisions automatically interchangeable with IS200STTCH2A?＋

IS200STTCH2A has a revision-specific H2A designation. Confirm the installed PTCC pack and supported sensor set before considering another terminal board.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200STTCH2A

Official manufacturer-documentation status for GE IS200STTCH2A.

Official datasheet status

No current official IS200STTCH2A product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The product identification on this page follows the available GE manufacturer documentation; request exact current IS200STTCH2A documentation for revision-specific replacement verification.

GE MARK VIE THERMOCOUPLE-INPUT RELATIONSHIP

How IS200STTCH2A Fits a Mark VIe Thermocouple Input

GE is the manufacturer brand; GE Mark VIe is the product family; and IS200STTCH2A is the Simplex Thermocouple Input Terminal Board for twelve channels.

GE · BRAND
GE Mark VIeSimplex Thermocouple Input Terminal Board
SYSTEM ROLE

Simplex Thermocouple Input Terminal Board

Terminates twelve thermocouple or millivolt inputs and connects them to a PTCC I/O pack.

MODULE / CONFIGURATION

12 channels · thermocouple and mV

Sensor types and millivolt span depend on whether the installed I/O pack is PTCCH1 or PTCCH2.

ORDER DATA

IS200STTCH2A · Simplex Thermocouple Input Terminal Board

Do not substitute another board without checking the complete H2A revision, PTCC pack version, sensor type and field wiring.

System relationship: verify the exact H2A revision, PTCCH1 or PTCCH2 I/O pack, thermocouple type, millivolt span and connected field circuits.
APPLICATION AREAS

Application map for IS200STTCH2A

Thermocouple InterfaceTerminate twelve temperature-sensor channels
Millivolt InputAccept the mV span documented for the installed PTCC pack
MARK VIE TEMPERATURE INPUT IS200STTCH2A IS200STTCH2A · Thermocouple Terminal Board
Cold-Junction ReferenceUse the terminal-board reference for thermocouple measurement
Configuration CheckConfirm the complete order number, installed I/O relationship and field-interface requirements before replacement.
ABOUT MOORE AUTOMATION

A trusted industrial automation sourcing partner
