GE IS200ICIAH1A Innovation I/O Board

Contact Information

IS200ICIAH1A Specifications

IS200ICIAH1A Description

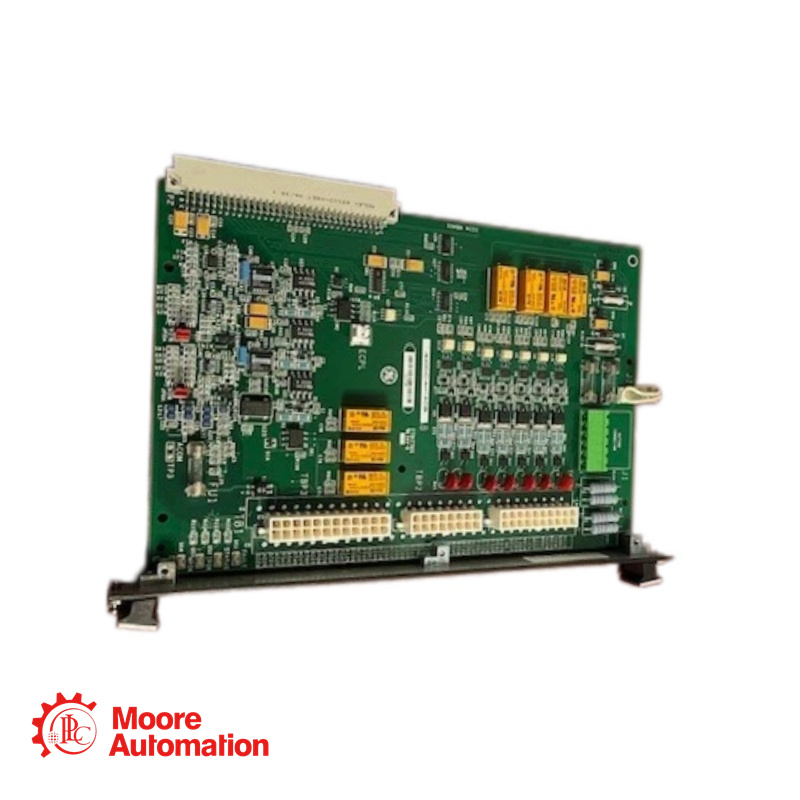

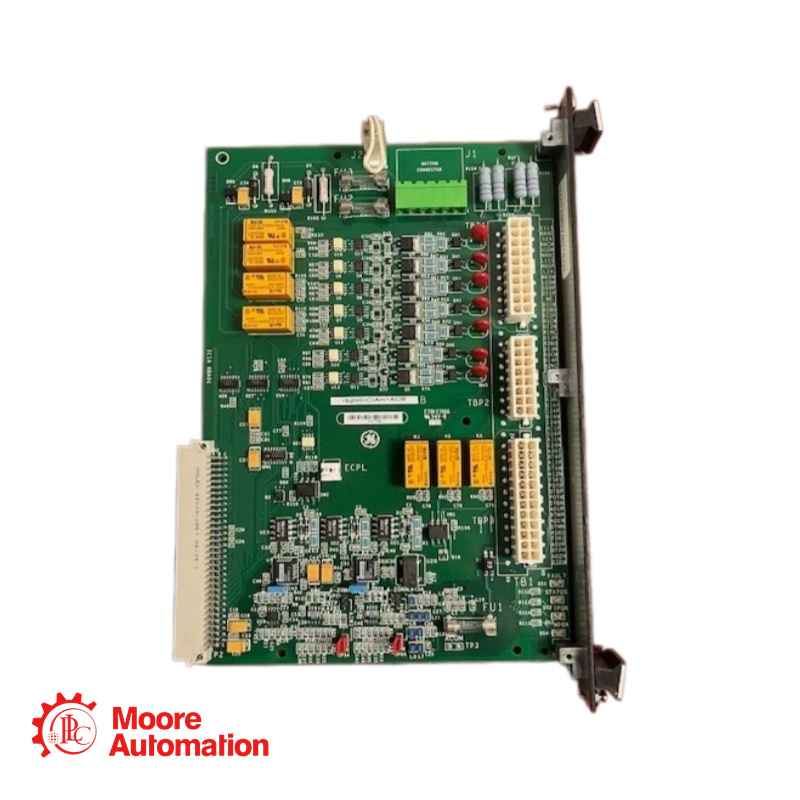

IS200ICIAH1A is an Innovation I/O Board developed by GE. It is a part of EX2100 excitation system. It provides input and output capabilities, enabling effective control and monitoring within the excitation system. The faceplate consists of mounting screws and two mounting brackets, which are the only visible components. The card is designed to connect to a specific slot on the backplane of a card rack within the system.It is essential to insert the card into the correct slot to avoid potential damage to the card slot or the board itself. Its faceplate features mounting screws and brackets, while the circuit board hosts various connectors, terminal board strips, relays, electronic components, fuses, jumpers, and diagnostic connections. This comprehensive design allows the card to provide versatile input and output capabilities essential for effective control, monitoring and diagnosis within the excitation system，

The IS200ICIAH1A or ICIA is meant to be a replacement PCB. It is attached to a very simple faceplate. The only components on the faceplate are mounting screws and two mounting brackets. The ICIA plugs into a backplane on a card rack. It should be plugged into a very specific slot on the backplane. Trying to plug this card in the wrong slot could result in damage to the card slot or the board.

IS200ICIAH1A Alternative names

IS200ICIAH1A FAQ

What is the IS200ICIAH1A?

The IS200ICIAH1A is an Innovation I/O Board (ICIA) manufactured by GE as part of the EX2100 excitation system. It provides essential input and output capabilities for effective control, monitoring, and diagnostics within the excitation system.

What does this IS200ICIAH1A device's conformal PCB coating style entail specifically?

The conformal type of PCB coating applied to this IS200ICIAH1A device is a thin layer of chemically-applied PCB protection made available to the entire base PCB of the IS200ICIAH1A device.

What system is this board used in?

The IS200ICIAH1A is used in the GE EX2100 excitation system, which is part of the Mark VI Speedtronic series. It provides I/O capabilities for controlling and monitoring excitation systems in power generation applications.

How does the board physically install?

The board plugs into a specific slot on the backplane of a card rack within the system. It is attached to a simple faceplate with mounting screws and two mounting brackets, which are the only visible components when installed.

What happens if I install the board in the wrong slot?

The board is designed to be inserted into a specific slot on the backplane. Trying to plug the card into the wrong slot could result in damage to the card slot or the board itself. Proper slot identification is critical before installation.
