IS200BPIBG1A IS200BPIBG1AEBDescription

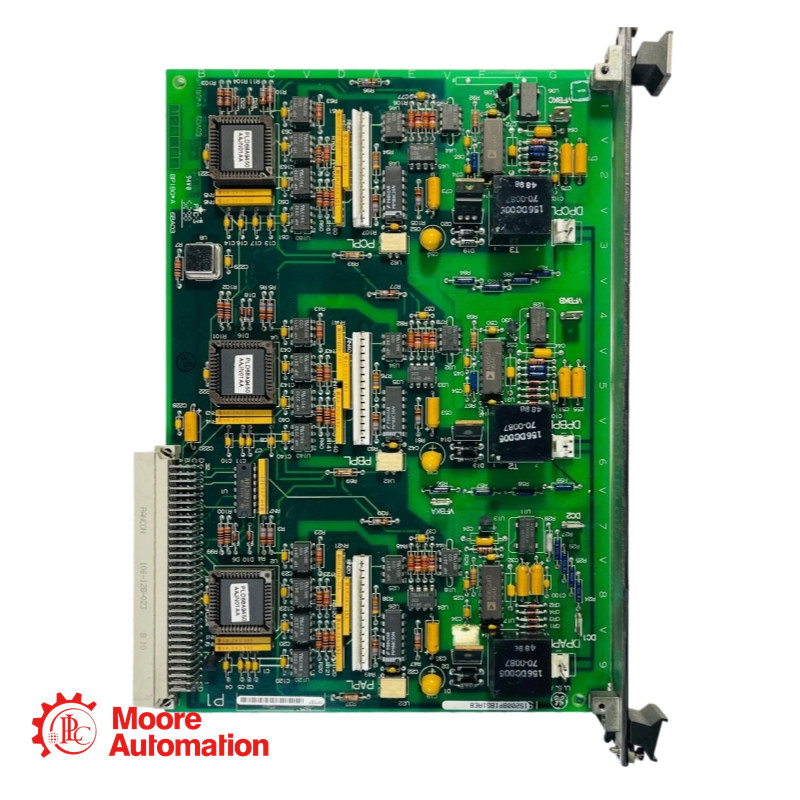

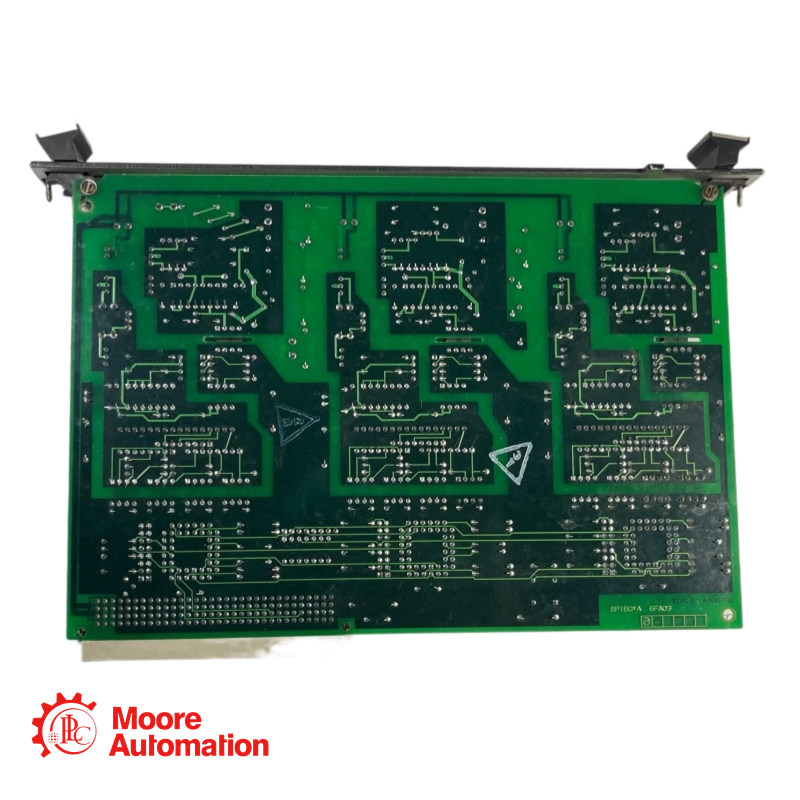

Model IS200BPIBG1AEB is an IGBT Drive Bridge Personality Interface Board manufactured by General Electric and used in the Mark VI IS2000 series. The Mark VI Turbine Control System Series that this IS200BPIBG1AEB printed circuit board or PCB for short belongs to, as it is known at length, exist with a specific series of possible functional product applications in the management and control systems of General Electric-compatible gas, steam, and wind turbine automated drive assemblies. This actually must be treated as a significant functional upgrade upon the previously-developed Mark V Turbine Control System Series of a full extended series name, as the Mark V Series existed with gas and steam-based functional applications possible alone. This IS200BPIBG1AEB device's greater Mark VI Turbine Control System Series is additionally desired on greater relevant promotional markets for its quality as one of the final GE Mark Series iterations to utilize the patented Speedtronic control system technology in many of its products.

IS200BPIBG1A IS200BPIBG1AEB Technical Specifications

Manufacturer:General Electric Industrial Systems
Functional Acronym/Abbreviation:BPIB
Functional Description:IGBT Drive Bridge Personality Interface Board
DC Link Voltage Feedback VCO Range:0-20 MHz
Power Requirements:17.7 VAC or 5 VDC
IGBT Driver Card Interface Supply Output:Isolated 5 VDC, max. 500 Ma

IS200BPIBG1A IS200BPIBG1AEB Key Features and Advantages

√ Equipped with 40 discrete logic input channels
√ Supports up to 6 driver boards in bridge mode or 3 in single mode
√ Accepts a 17.7 VAC transformer input or 5 V DC logic voltage; provides an isolated +5 V DC @ 500 mA output
√ Contains a serial 1024-bit identification chip
