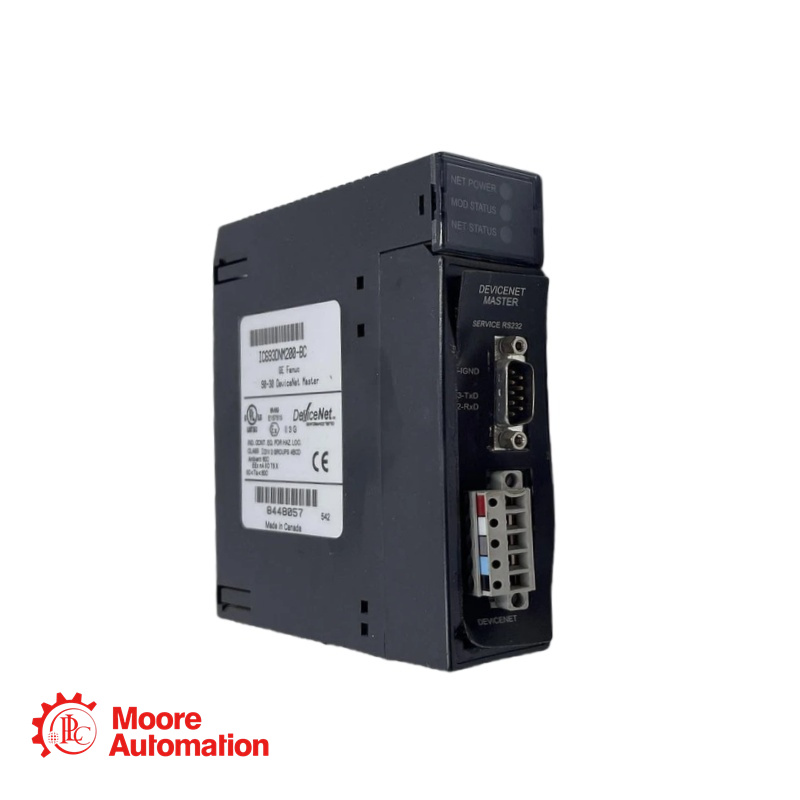

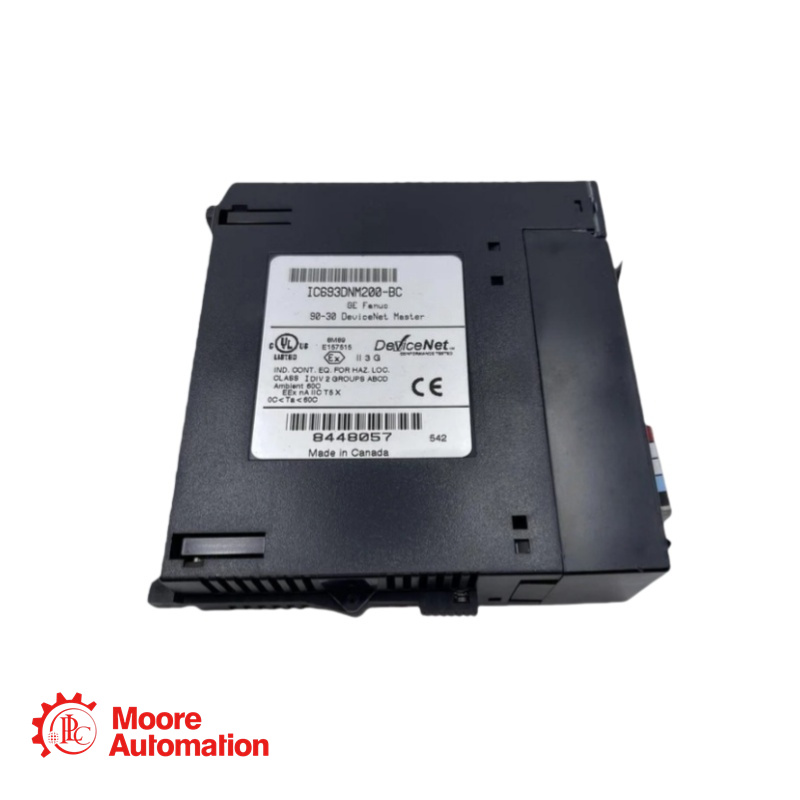

GE IC693DNM200-BC DeviceNet Master Module

Inquire now to get quotation

Sales Manager: Frida
Phone/Whatsapp/Wechat:+86 15359408275

Email: sales5@mooreplc.com

IC693DNM200-BC Description

The IC693DNM200-BC is a Series 90-30 component that is manufactured by GE Fanuc. This is a single-slot DeviceNet Master Module with One (1) DeviceNet terminal and One (1) RS232 Service port. This module supports standard DeviceNet transmission rates such as 125K, 250K and 500K and capable of 255 input data bytes and 255 output data bytes and capable of accommodating up to 63 DeviceNet slaves.

IC693DNM200-BC Specification

Product Line:Series 90-30
Compatibility:Series 90-30, PACSystems RX3i
Communication speed:125K, 250K and 500K
Supported data rates:125K, 250K and 500K Baud
Rated voltage:12 to 24 Volts DC, positive logic
ON-state voltage drop:0.3 Volts DC
No. of slaves:up to 63 DeviceNet slaves
ON / OFF response times:0.5 milliseconds (maximum)
No. of I/O connection per slave:Two (2) I/O connection per slave
Number of outputs:32
Data transfer per slave:255 Input Bytes / 255 Output Bytes
Inrush current:5.4 Amps for 10 milliseconds
Data transfer to Master 3972 Input Bytes / 3972 Output Bytes
Output current:0.5 Amps per point
Backplane current consumption:450 milliAmps at 5 Volts DC (typical)
Operating temperature:0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Backplane Current draw:450mA at 5VDC (typical)
Storage temperature:-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
