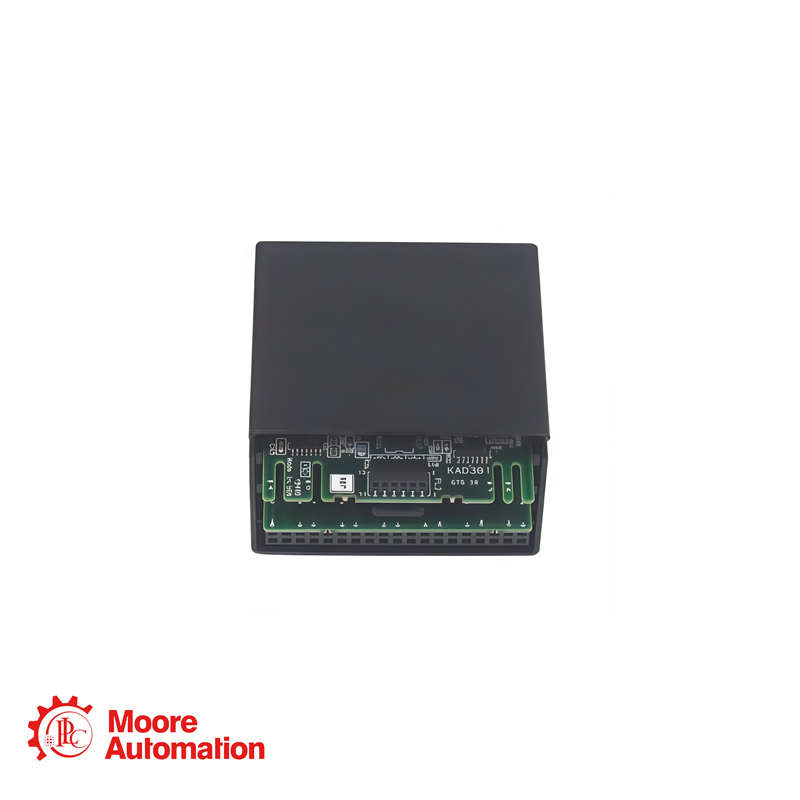

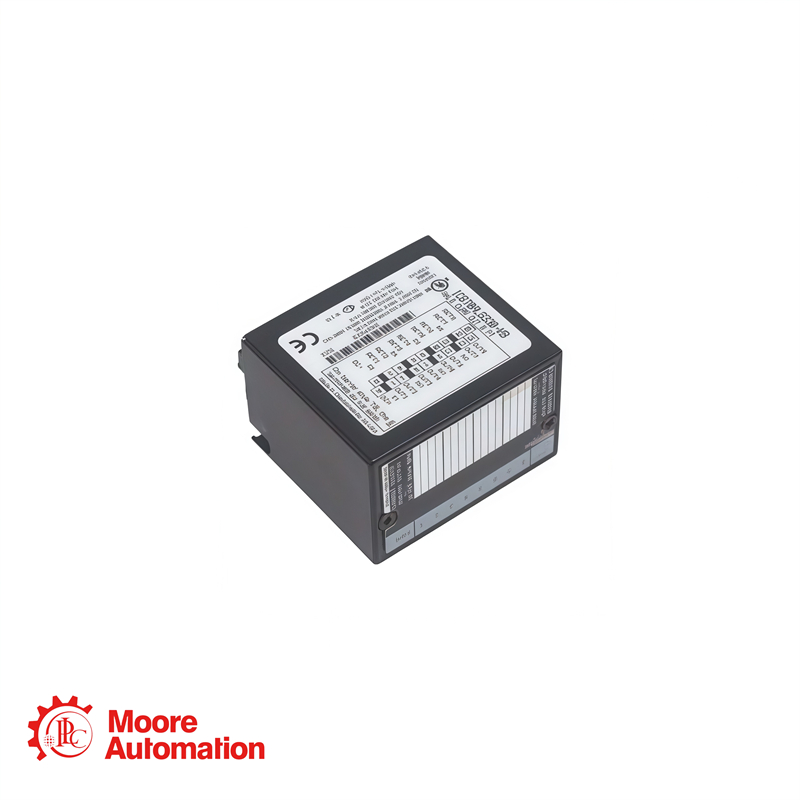

GE IC670ALG330 Analog Output Module

Product Description

Manufacture: GE
Part Number: IC670ALG330

Type: Analog Output Module
Shipping Port: Xiamen,China
Warranty: 1 Year

Output range: 4–20 mA (default); 0–20 mA; 0–25 mA (software selectable)
Channels: 8
Resolution: 14 bits (0.06% LSB, 1 µA resolution in the 4–20 mA range)
Accuracy: ±0.15% full scale (25°C)
Settling time: <1 ms (typical)
Maximum load resistance: 1250 Ω (@ 24 V loop power)
Loop power: External 24 VDC, maximum 22 mA/channel
Isolation: Channel-to-bus 1500 V RMS; channel-to-channel non-isolated
Backplane current: +5 VDC 125 mA (typical); +24 VDC 8 mA/channel
Diagnostics: Real-time detection of open circuit, short circuit, overtemperature, and undervoltage, with diagnostic frames uploaded to the backplane
Operating temperature: –40°C to +85°C
Storage temperature: –40°C to +100°C
Relative humidity: 5% to 95% non-condensing
