 /Foxboro P0923RK TAA10 Termination Assembly Adapter for I/A Series 100 Series Upgrade

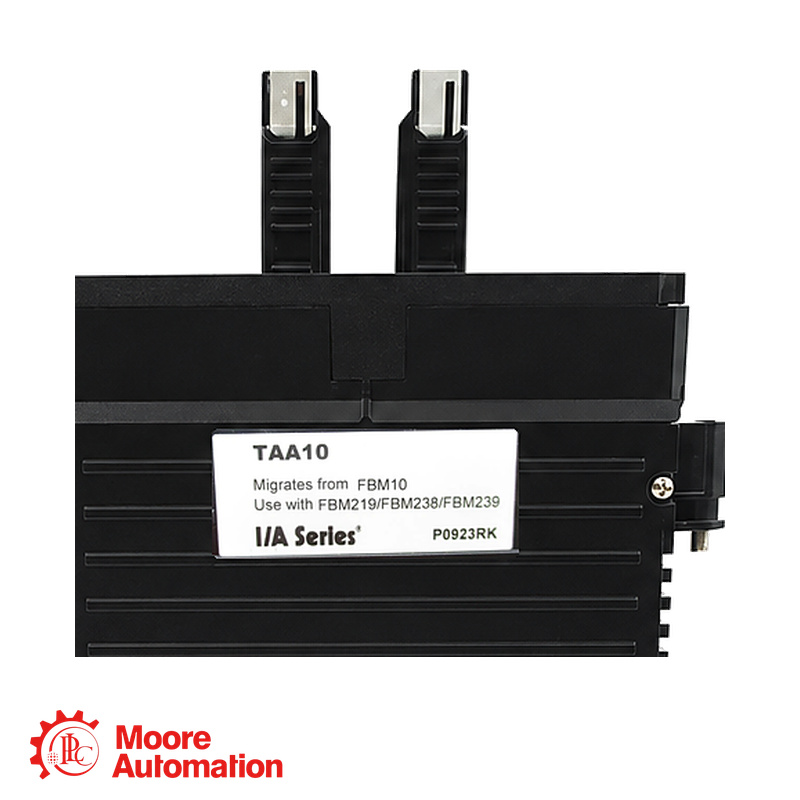

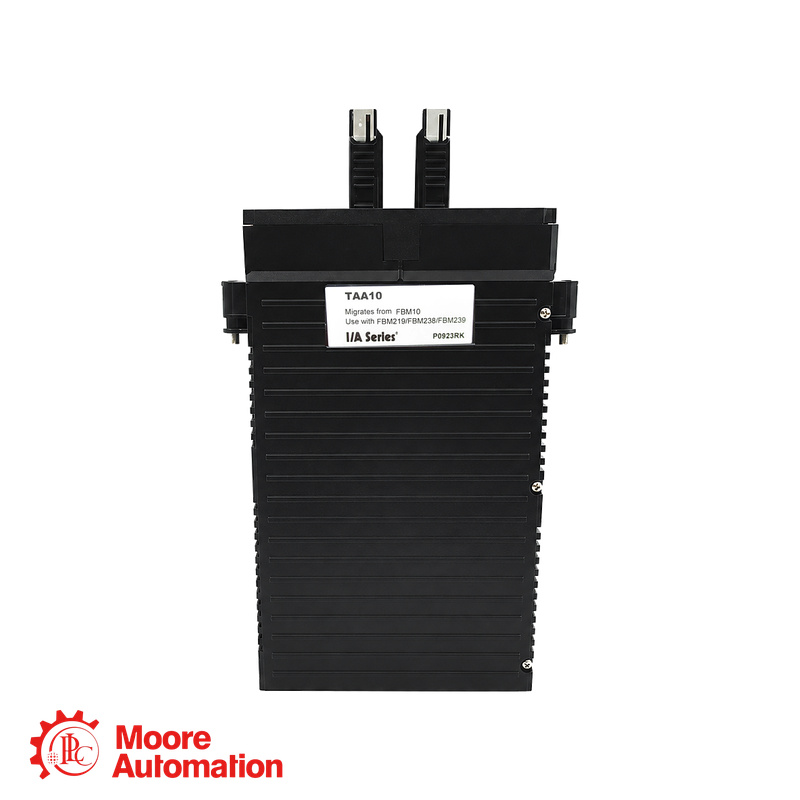

Foxboro P0923RK TAA10 Termination Assembly Adapter
Foxboro P0923RK TAA10 Termination Assembly Adapter
Foxboro P0923RK TAA10 Termination Assembly Adapter

Foxboro P0923RK TAA10 Termination Assembly Adapter for I/A Series 100 Series Upgrade

FOXBORO I/A SERIES · TAA10 ADAPTER

P0923RK

The Foxboro P0923RK is the TAA10 Termination Assembly Adapter used in the I/A Series 100 Series Fieldbus Module upgrade path, providing eight 120 V ac input channels and eight 120 V ac output channels.

FamilyI/A Series
Module TypeTAA10 Main
Input / Output8 / 8 Channels
Nominal I/O120 V ac
MANUFACTURERFoxboro
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE   WHATSAPP · +86 153 5940 8275
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
FOXBORO ● 100 SERIES UPGRADE
TAA10 TERMINATION ASSEMBLY ADAPTER

P0923RK

PART NUMBER: P0923RK

TAA10 Termination Assembly Adapter

SYSTEM ROLE
P0923RK is identified in the official Foxboro I/A Series documentation as the TAA10 Termination Assembly Adapter used for upgrading the 100 Series FBM10 field wiring to associated 200 Series FBMs.
I/O CONFIGURATION
For P0923RK, the official TAA10 specification provides eight 120 V ac input channels and eight 120 V ac output channels, with 24 V dc redundant power input.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
PRODUCT IDENTIFICATION

How P0923RK is identified in the Foxboro I/A Series

Foxboro is the product brand, I/A Series is the control-system family, and P0923RK is the part number for the TAA10 Termination Assembly Adapter.

MANUFACTURERFoxboro
SYSTEM FAMILYI/A Series
PRODUCT TYPETAA10 Adapter
PART NUMBERP0923RK
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

FOXBORO ↗
P0923RK

Engineering data at a glance

Click “+” to expand more specifications.

LENGTH27 cm
WIDTH16 cm
HEIGHT3.5 cm
WEIGHT0.6 kg
Product arrival inspection record.
Selection verificationConfirm the complete part number, connected FBM10 wiring, I/O voltage and associated 200 Series FBM before replacing or ordering P0923RK.
General Information −
BrandFoxboro
Part numberP0923RK
Displayed part numberP0923RK
Product typeTermination Assembly Adapter
System familyI/A Series
Module designationTAA10 Main Module
Power and System Data ＋
Power input24 V dc +5%, -10%
Power consumption11 W maximum
Heat dissipation25 W maximum
I/O and Termination ＋
Input channels8 independent channels; 79–132 V ac ON-state
Output channels8 independent channels; 79–132 V ac; 2 A maximum per channel
Source: Foxboro I/A Series Termination Assembly Adapter Modules for 100 Series Upgrade, PSS 21H-2W4 B4, TAA10 specifications.
FAQ

Questions Buyers Ask Most

What is P0923RK used for?＋

P0923RK is the Foxboro TAA10 Termination Assembly Adapter used in the I/A Series 100 Series upgrade path to retain field wiring while interfacing FBM10 applications with associated 200 Series FBMs.

How many I/O channels does P0923RK provide?＋

P0923RK provides eight independent 120 V ac voltage-monitor input channels and eight independent 120 V ac output-switch channels.

Which 200 Series FBMs are associated with P0923RK?＋

P0923RK is listed for the FBM10 upgrade path with FBM238 or FBM239, depending on the required I/O function and expansion-module configuration.

What power and environmental ratings apply to P0923RK?＋

P0923RK uses redundant 24 V dc power input, operates from 0 to 60°C, supports 5 to 95% noncondensing relative humidity, and has a documented mass of 1 kg.

What should I provide for a P0923RK quotation?＋

Send the complete part number, quantity, connected FBM10 and expansion-module details, field voltage, destination and clear nameplate photos. Contact Frida at sales5@mooreplc.com or WhatsApp +86 153 5940 8275.

CONTACT PRODUCT SPECIALIST

Check P0923RK with Frida

Share the complete part number, connected FBM and field-voltage details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
Official Datasheet

Manuals and Official References for P0923RK

Product information is limited to the official Foxboro I/A Series TAA documentation for the 100 Series upgrade path.

P0923RK Official Product Specification

The official PSS 21H-2W4 B4 document identifies P0923RK as the TAA10 Termination Assembly Adapter and publishes its functional, electrical, environmental and physical specifications.

OFFICIAL DATASHEET ↗

Technical statements on this product page are limited to official Foxboro I/A Series manufacturer documentation. No third-party product sources were used.

I/A Series Product Relationship

How P0923RK fits into the Foxboro I/A Series upgrade path

Foxboro is the product brand; I/A Series is the control-system family; and P0923RK identifies the TAA10 Termination Assembly Adapter used with the FBM10 upgrade path.

INPUT CHANNELS
8 channels

120 V ac voltage-monitor inputs documented for TAA10.

OUTPUT CHANNELS
8 channels

120 V ac output-switch channels documented for TAA10.

ASSOCIATED FBMs
FBM238 / FBM239

200 Series FBMs listed for the FBM10 upgrade path.

Compatibility note: verify the existing FBM10 field wiring, expansion module and required 200 Series FBM before ordering.
Application Areas

Where P0923RK is used in the upgrade path

100 Series FBM10 UpgradeConnects the original FBM10 field I/O wiring to the 200 Series upgrade subsystem.
120 V ac Input MonitoringSupports eight independent voltage-monitor input channels.
APPLICATION CENTERP0923RK TAA10Digital field I/O interface
120 V ac Output SwitchingSupports eight output channels with current-overload protection.
Redundant Fieldbus InterfaceInterfaces field sensors and actuators through associated FBM238 or FBM239 modules.
