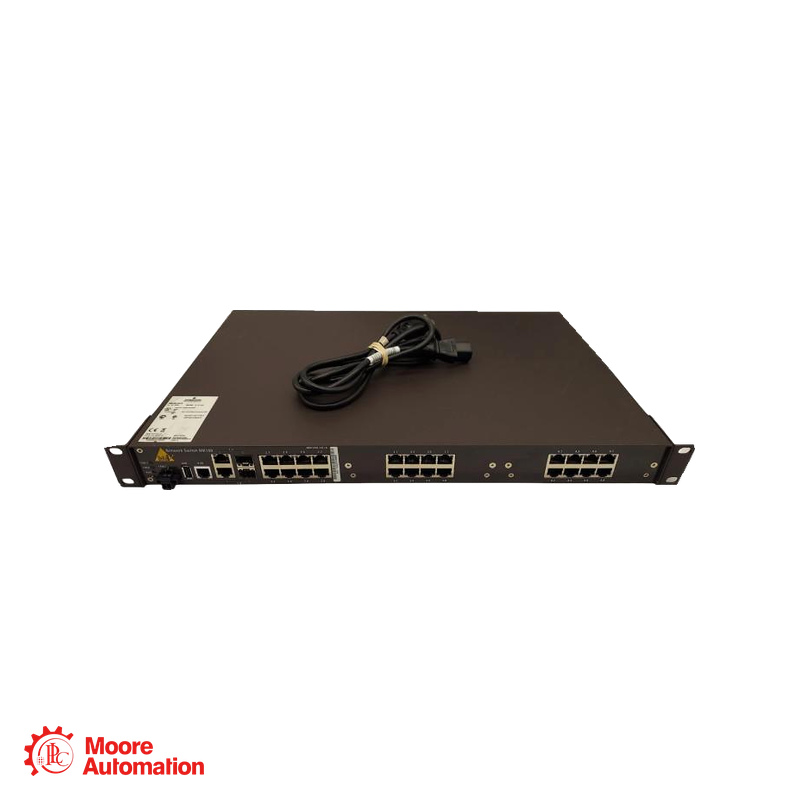

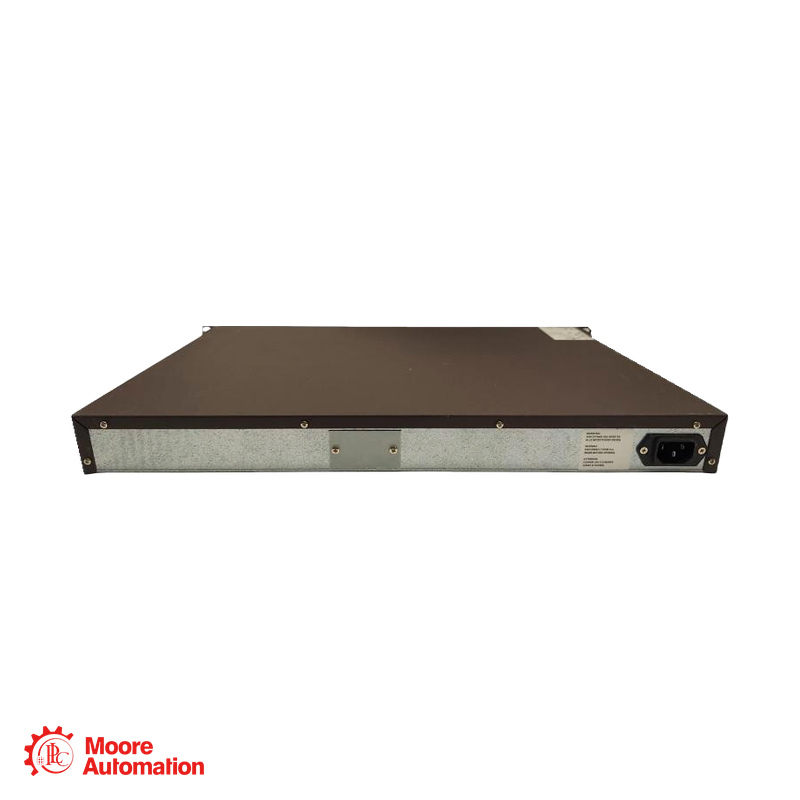

Emerson KJ1611X1-FD1 12P4473X032 DeltaV RM100-24TX Smart Network Switch
Emerson KJ1611X1-FD1 12P4473X032 DeltaV RM100-24TX Smart Network Switch
Emerson KJ1611X1-FD1 12P4473X032 DeltaV RM100-24TX Smart Network Switch

Emerson KJ1611X1-FD1 12P4473X032 DeltaV RM100-24TX Smart Network Switch

DELTAV RM100-24TX SMART NETWORK SWITCH

KJ1611X1-FD1 12P4473X032

The complete KJ1611X1-FD1 12P4473X032 is an Emerson DeltaV RM100-24TX network switch with 24 Fast Ethernet copper ports and two copper/SFP combo uplinks. It has a fixed port configuration for rack-mounted DeltaV network installations.

COPPER PORTS24 × 10/100
UPLINKS2 combo
PLATFORMDeltaV
CONSTRUCTIONFixed ports
MANUFACTUREREmerson
PRODUCT TYPEDeltaV RM100-24TX Smart Network Switch
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONPhotos and video after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
Emerson ● DELTAV RM100-24TX · SMART NETWORK SWITCH
EMERSON DELTAV RM100 SERIES

KJ1611X1-FD1 12P4473X032

24 FAST ETHERNET PORTS

24 copper ports · Two combo uplinks · Fixed configuration

PRODUCT ROLE
KJ1611X1-FD1 12P4473X032 is an Emerson DeltaV RM100-24TX Smart Network Switch. Its 24 copper access ports operate at 10/100 Mbps; the two combo uplinks provide copper or SFP connectivity.
INSTALLATION CHECK
Match the complete hardware reference, network design, power connection and installed transceivers before replacement.
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Emerson KJ1611X1-FD1 12P4473X032
DeltaV Smart Network Switch

Engineering data at a glance

Expand the groups for network, power and rack-installation data.

PORTS24 × RJ45
SPEED (Mbps)10/100
UPLINKS2 × GbE
POWER16 W
Fixed-port configurationRM100-24TX is not modular. VE6049 expansion modules do not apply to this fixed-port switch.
GENERAL INFORMATION −
BrandEmerson
Part numberKJ1611X1-FD1 12P4473X032
Product typeDeltaV RM100-24TX Smart Network Switch
Product lineDeltaV RM100
Copper access ports24 × RJ45, 10/100 Mbps
Uplink ports2 copper/SFP combo uplinks
Copper uplink speed10/100/1000 Mbps
Port constructionFixed, non-modular
Power consumption16 W
Weight4.02 kg
Mounting19-inch control cabinet
POWER & ENVIRONMENT＋
Operating supply100–240 VAC, 47–63 Hz
Operating temperature0 to +50 °C
ProtectionIP20
NETWORK CONFIGURATION＋
The fixed RM100-24TX configuration provides copper access connections and two combo uplinks. Use compatible VE6050-series transceivers where an optical uplink is required. VE6049 expansion modules cannot be installed in this switch.
Source:Emerson DeltaV Smart Switches Product Data Sheet, March 2016, RM100-24TX / VE6046 specifications and ordering information, pages 12 and 24.
FAQ

KJ1611X1-FD1 12P4473X032 Specifications, Applications and Ordering FAQ

What network role does KJ1611X1-FD1 12P4473X032 perform?＋

KJ1611X1-FD1 12P4473X032 is the fixed-port RM100-24TX DeltaV network switch; it connects Ethernet devices within the approved DeltaV network design.

Are all ports on KJ1611X1-FD1 12P4473X032 Gigabit Ethernet?＋

No. KJ1611X1-FD1 12P4473X032 has 24 copper 10/100 Mbps access ports. Gigabit connectivity is provided by its two copper/SFP combo uplinks.

Can VE6049 expansion modules be fitted to KJ1611X1-FD1 12P4473X032?＋

No. KJ1611X1-FD1 12P4473X032 is a fixed-port, non-modular switch. VE6049 expansion modules are for the modular switch hardware.

Which optical uplinks apply to KJ1611X1-FD1 12P4473X032?＋

KJ1611X1-FD1 12P4473X032 uses compatible VE6050-series transceivers in its combo uplink slots. Choose the exact transceiver for the installed fiber link.

Does KJ1611X1-FD1 12P4473X032 provide redundant power?＋

KJ1611X1-FD1 12P4473X032 belongs to the fixed-port RM100-24TX configuration, which is not available with redundant power.

What should be checked when replacing KJ1611X1-FD1 12P4473X032?＋

For KJ1611X1-FD1 12P4473X032, check the complete compound reference, installed transceivers, power connection and approved network topology.

Which document should accompany an order for KJ1611X1-FD1 12P4473X032?＋

For KJ1611X1-FD1 12P4473X032, request documentation covering the RM100-24TX hardware and the complete printed reference, including 12P4473X032.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
KJ1611X1-FD1 12P4473X032

Official manufacturer-documentation status for Emerson KJ1611X1-FD1 12P4473X032.

Official datasheet status

A direct manufacturer-hosted PDF covering the complete KJ1611X1-FD1 12P4473X032 reference was not confirmed. For the applicable product documentation, contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical reference: Emerson DeltaV Smart Switches Product Data Sheet, March 2016, RM100-24TX hardware specifications. No third-party download link is provided.

EMERSON DELTAV SYSTEM RELATIONSHIP

How RM100-24TX Connects the DeltaV Network

Emerson supplies the DeltaV Smart Switch family; KJ1611X1-FD1 12P4473X032 is the compound hardware reference for the RM100-24TX switch.

Emerson · BRAND
KJ1611X1-FD1 12P4473X032NETWORK SWITCH
NETWORK ROLE

Ethernet switching

Connect DeltaV network devices through the access and uplink ports.

PORT CONFIGURATION

24 copper + 2 combo

Use 10/100 Mbps copper access ports and the two copper/SFP uplinks.

RACK INSTALLATION

Fixed-port hardware

The RM100-24TX is a non-modular rack switch for a 19-inch control cabinet.

System relationship:The switch links network endpoints and upstream connections within the approved DeltaV Ethernet architecture.
APPLICATION AREAS

Application areas for KJ1611X1-FD1 12P4473X032

DeltaV Control NetworksConnect approved network endpoints through the fixed copper access ports.
Rack Network DistributionProvide Ethernet distribution from a 19-inch control cabinet.
APPLICATION CENTER KJ1611X1-FD1 12P4473X032 DeltaV RM100-24TX fixed-port Ethernet network switch.
Copper Uplink ConnectionsUse the combo copper interfaces for upstream network connections.
Fiber Uplink ConnectionsUse compatible SFP transceivers for the required optical uplink.
