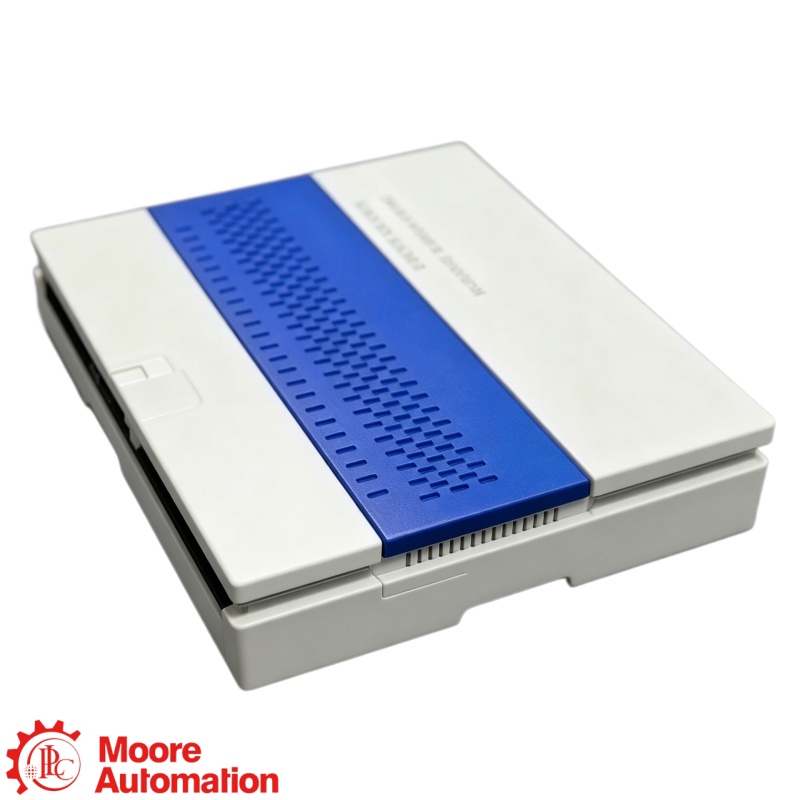

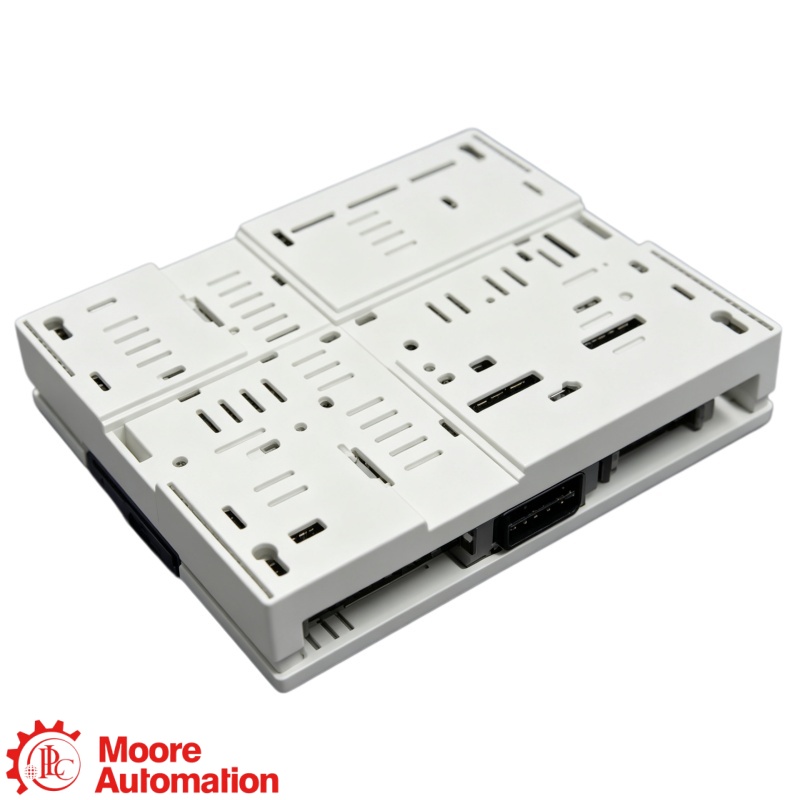

ACM-000-000-000-000-00-00-00 is an Alerton Ascent Control Module used for global building automation control, BACnet integration, DDC programming, scheduling, alarming and network management.

ACM-000-000-000-000-00-00-00 is documented for 20–30 VAC at 40 VA and 47–63 Hz, with an optional battery-backup configuration.

ACM-000-000-000-000-00-00-00 supports BACnet on Ethernet, BACnet/IPv4, BACnet/IPv6 and MS/TP, as well as Modbus TCP and RTU and other documented Alerton or Niagara-supported protocols.

50080121-001 should not be replaced automatically without comparing the complete model, option cards, licensed device capacity, communication trunks and connected system requirements.

For ACM-000-000-000-000-00-00-00, provide the full model, article number 50080121-001, quantity, destination and clear nameplate photos, together with required option-card and license details.

ACM-000-000-000-000-00-00-00 is documented as the backbone of the BACtalk Ascent product line, combining Alerton BACnet capability with Niagara Framework flexibility. The controller supports up to six global controller instances, up to six BACnet MS/TP or EIA-485 networks and two integrated 10/100/1000 Mbps Ethernet ports.

ACM-000-000-000-000-00-00-00 supports segmented DDC program execution and documented capacity for 2,000 trendlogs, 2,000 alarms, 384 schedules and 384 zones.
