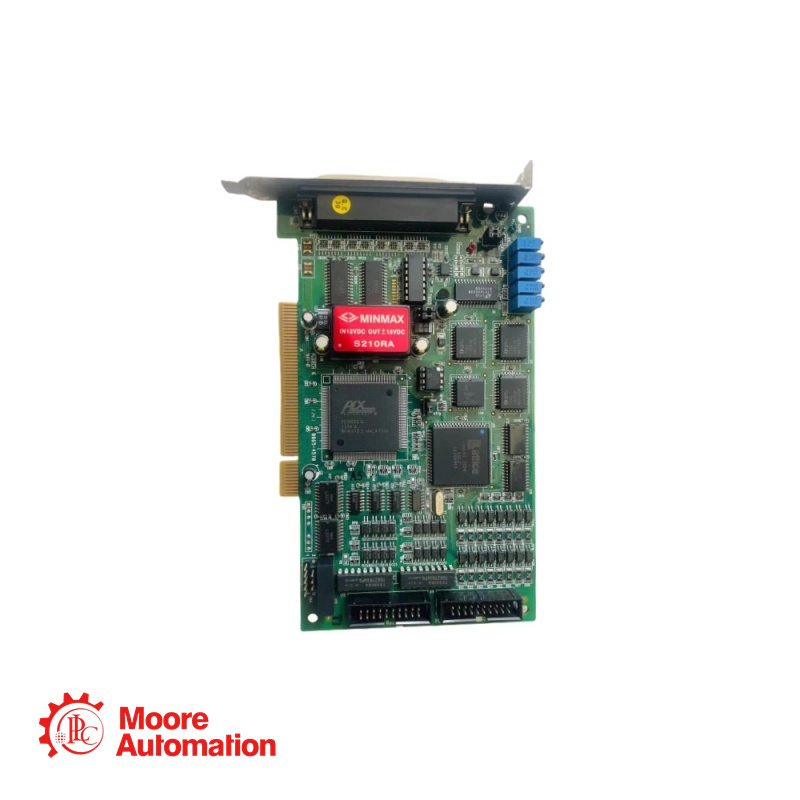

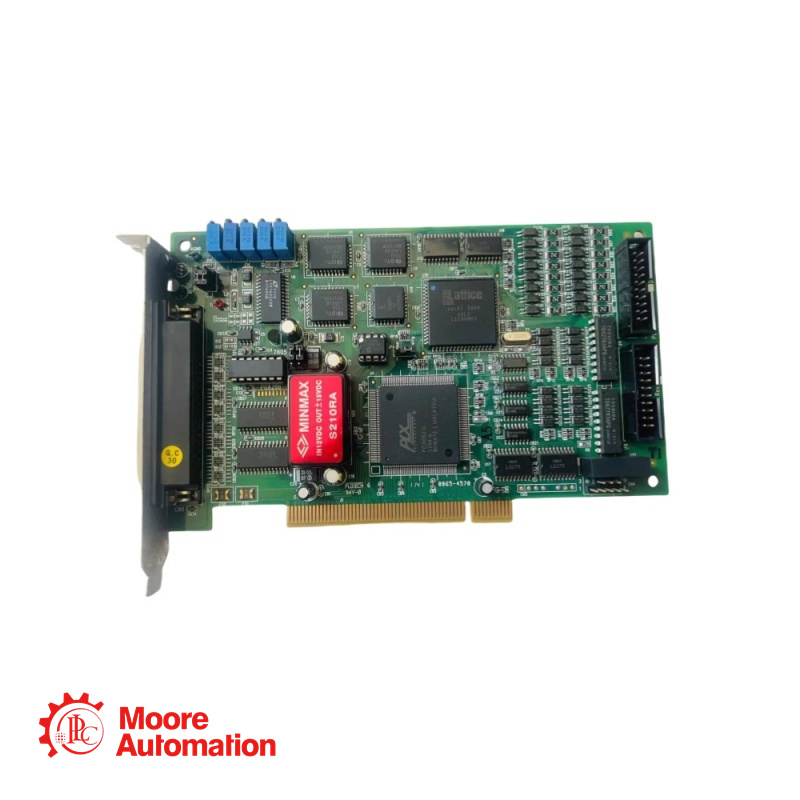

/ADLINK PCI-9114A-DG communication data acquisition card
ADLINK PCI-9114A-DG communication data acquisition card
ADLINK PCI-9114A-DG communication data acquisition card
ADLINK PCI-9114A-DG communication data acquisition card

ADLINK PCI-9114A-DG communication data acquisition card

  • Marca :

    ADLINK
  • Número de parte :

    PCI-9114A-DG
  • Peso :

    0.2 kg
  • Dimensión :

    20.5x22.5x3.5cm
  • País de origen :

    Taiwan
  • Código hs :

    8537101190
  • Descripción :

    communication data acquisition card

Products description

ADLINK’s PCI-9114 series are 32-CH, 16-bit, high-resolution multi-function DAQ cards. The PCI-9114 device features flexible configurations on analog input. The devices are divided into 2 kinds: normal gain version and high gain version. Both versions provide 4 programmable input ranges for bipolar and unipolar inputs. The A/D on the PCI-9114DG device features a sampling rate of 100 kS/s with resolution at 16 bits, while PCI-9114A-DG/HG device features a sampling rate of up to 250 kS/s with resolution at 16 bits. The device supports automatic analog input scanning, and offers a differential mode for 8-CH analog inputs and maximum noise elimination, as well as single-ended modes for16-CH analog inputs.


Products Info

Supports a 32-bit 5 V PCI bus
16-bit A/D resolution
Up to 100 kS/s sampling rate (PCI-9114DG)
Up to 250 kS/s sampling rate (PCI-9114A-DG and
PCI-9114A-HG)
32-CH single-ended or 16-CH differential analog inputs
Automatic analog inputs scanning
16-CH isolated digital inputs and 16-CH isolated digital outputs
2500 VRMS optical isolation for digital inputs and outputs
1-CH 16-bit general-purpose timer/counter
+12 V and -12 V power available on the 37-pin D-sub connector
