The ABB ACS580-01-026A-4 is a wall-mounted AC drive developed for general-purpose motor control
Marca :
ABBNúmero de parte :
ACS580-01-026A-4Peso :
6.6 kgDimensión :
12.5x47.3x22.6 cmPaís de origen :
SwedenCódigo hs :
8537101190Descripción :
General Purpose AC Drive
Contact Frida for ACS580-01-026A-4 Pricing
|
Inquiry Information |
Contact Details |
|
Product Model |
ACS580-01-026A-4 |
|
Inquiry Type |
Price, availability and delivery time |
|
Contact Person |
Frida |
|
|
|
|
Information to Provide |
Required quantity and delivery destination |
Product Overview

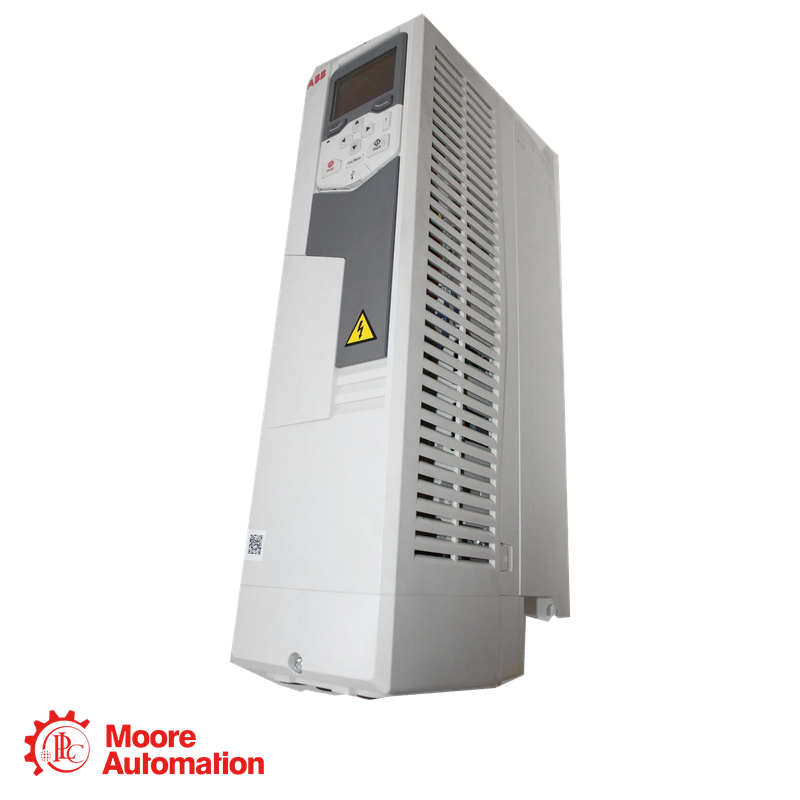

The ABB ACS580-01-026A-4 is a wall-mounted AC drive developed for general-purpose motor control. Its nominal IEC output is 25 A with an 11 kW motor rating at 400 V. Built in the R2 frame, the standard model uses an IP21 enclosure for indoor installation. It can regulate the speed and torque of induction, permanent-magnet and synchronous reluctance motors when the motor data and control parameters are correctly configured. The standard drive includes an assistant control panel, Modbus RTU communication, Safe Torque Off, an internal EMC filter and a braking chopper. It can operate as an independent motor controller or exchange commands and process data with a compatible automation system.
Technical Specifications
|
Parameter |
Specification |
|
Model Number |
ACS580-01-026A-4 |
|
Product Type |
Wall-mounted AC drive |
|
Input Supply |
380–480 V AC, three-phase |
|
Rated Power |
11 kW at 400 V |
|
Rated Output Current |
25 A at 400 V |
|
Frame Size |
R2 |
|
Enclosure Rating |
IP21 |
Benefits
-Adjustable motor speed
-Controlled acceleration and stopping
-Reduced starting current
-Lower mechanical stress
-Straightforward parameter setup
-Integrated energy monitoring
-Flexible automation connection
-Compact cabinet installation
Key Highlights
● 11 kW nominal IEC rating
● 25 A nominal output at 400 V
● 30.6 A maximum output current
● 380–480 V three-phase supply
● R2 wall-mounted construction
● Integrated Safe Torque Off
● Built-in braking chopper
● Standard Modbus RTU interface
Customer Questions and Answers
Customer Question
Engineering Answer
What motor rating is suitable for the ACS580-01-026A-4?
Its nominal IEC rating is 11 kW and 25 A at 400 V. Selection should be based on the motor nameplate current and load duty rather than motor power alone.
What is the heavy-duty rating at 400 V?
ABB specifies 17 A and 7.5 kW for heavy-duty operation. This lower rating applies where the load requires increased overload capability or higher starting torque.
How is the drive rated on a 480 V supply?
At 480 V, ABB lists a light-duty rating of 23 A and 15 hp. The heavy-duty rating is 14 A and 10 hp. The selected rating must match the application load profile.
Does this R2 drive include a braking chopper?
Yes. A braking chopper is integrated into the R2 frame. The required external braking resistor must be sized according to load inertia, stopping time, motor rating and braking frequency.
What should be verified before the first start?
Check the incoming voltage, motor nameplate values, grounding, fuse selection, power-cable size, current limit, speed range, ramp times, rotation direction, cooling clearance and Safe Torque Off wiring.
Industries Served
Water and Wastewater--The ACS580-01-026A-4 can regulate transfer pumps, circulation pumps and pressure-boosting systems within its rated capacity. Adjusting pump speed to process demand can reduce the energy losses associated with valves and continuous full-speed operation.
Food and Beverage Processing--Possible applications include conveyors, mixers, agitators and process pumps fitted with compatible motors. Adjustable ramp settings can provide smoother starts and stops while reducing shock loads on belts, couplings and gearboxes.
General Manufacturing--The ACS580-01-026A-4 can operate fans, pumps, mixers and auxiliary production machinery. Engineers should evaluate motor current, load torque, overload profile, stopping requirements and cabinet conditions before final selection.
|
