 /ABB ACS350-03E-03A3-4 General Machinery Drive

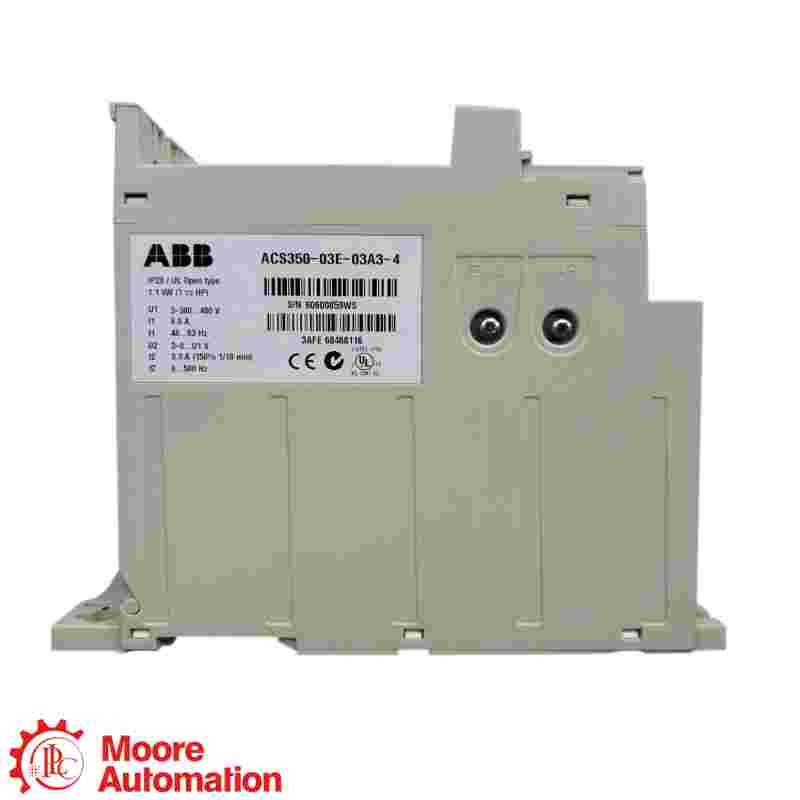

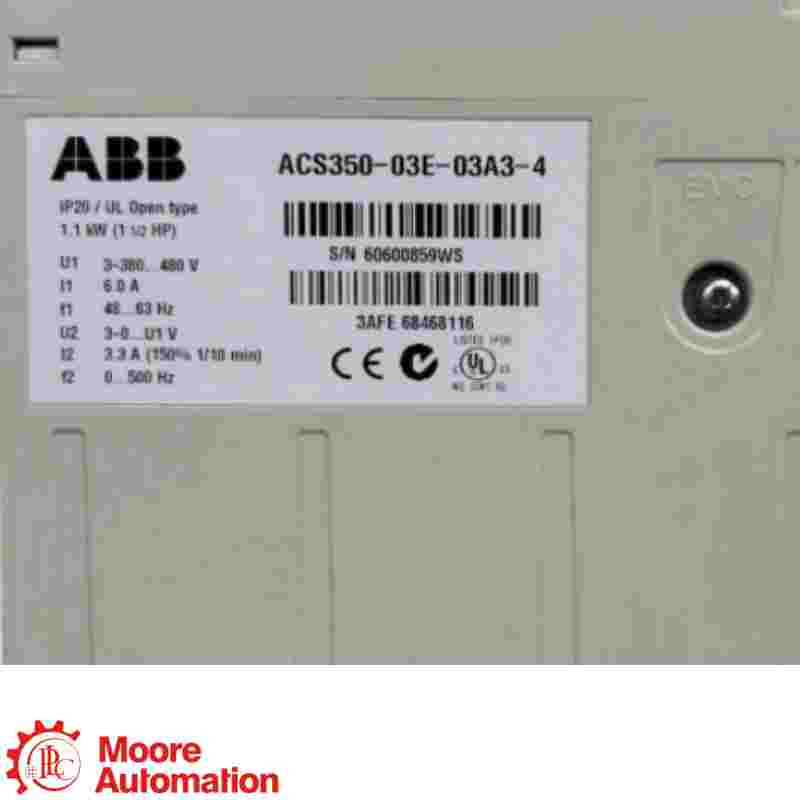

ABB ACS350-03E-03A3-4 General Machinery Drive
ABB ACS350-03E-03A3-4 General Machinery Drive
ABB ACS350-03E-03A3-4 General Machinery Drive

ABB ACS350-03E-03A3-4 General Machinery Drive

ABB · ACS350 GENERAL MACHINERY DRIVE

ACS350-03E-03A3-4

The ACS350-03E-03A3-4 is an ABB general machinery drive for 380–480 V, rated 3.3 A and 1.1 kW in frame R1.

MANUFACTURERABB
MODELACS350-03E-03A3-4
VOLTAGE CLASS380–480 V
PRODUCT FAMILYACS350
MANUFACTURERABB
PRODUCT TYPEGeneral Machinery Drive
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATION● 3.3 A nominal output · 1.1 kW motor power · frame R1
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ABB ● GENERAL MACHINERY DRIVE
GENERAL MACHINERY DRIVE

ACS350-03E-03A3-4

ABB ACS350 INDUSTRIAL DRIVE

3.3 A nominal output · 1.1 kW motor power

PRODUCT ROLE
ACS350-03E-03A3-4 is an ABB general machinery drive for 380–480 V, rated 3.3 A and 1.1 kW in frame R1.
INSTALLATION CHECK
Confirm ACS350-03E-03A3-4, frame R1, the 380–480 V supply class, ratings, options and installed-system compatibility before replacement.
WANT THE BEST PRICE?

Frida

Sales Leader 🏆
MODEL IDENTIFICATION

How ACS350-03E-03A3-4 is structured

ABB identifies ACS350-03E-03A3-4 as a general machinery drive in the ACS350 family.

ACS350
Drive family

ABB general machinery drive family

03E
Construction code

Three-phase drive with EMC filtering

03A3
Current designation

3.3 A nominal output current

4
Voltage class

380–480 V AC

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

ABB OFFICIAL TECHNICAL DATA
ACS350-03E-03A3-4 · GENERAL MACHINERY DRIVE

Engineering data at a glance

ABB ACS350-03E-03A3-4 is a compact general machinery drive for a three-phase 380–480 V supply, rated 3.3 A and 1.1 kW in frame R1.

HEIGHT239 mm
WIDTH70 mm
DEPTH161 mm
WEIGHT1.2 kg
The compact IP20 drive includes an embedded brake chopper and is designed for machinery applications with straightforward installation and commissioning.
GENERAL INFORMATION＋
ManufacturerABB
Model / referenceACS350-03E-03A3-4
Product typeGeneral Machinery Drive
Product familyACS350
RATINGS & OUTPUT＋
Nominal output current3.3 A
Nominal motor power1.1 kW / 1.5 hp
Output frequency0–500 Hz
Switching frequency4 kHz standard · 4–16 kHz adjustable
SUPPLY & PROTECTION＋
Supply voltage3-phase 380–480 V AC
Frame sizeR1
Degree of protectionIP20
Recommended fuse10 A IEC / UL
DIMENSIONS & INSTALLATION＋
Height239 mm
Width70 mm
Depth161 mm
Weight1.2 kg
FAQ

Questions Buyers Ask Most

What type of product is ACS350-03E-03A3-4?+

ACS350-03E-03A3-4 is an ABB ACS350 general machinery drive.

What nominal output current applies to ACS350-03E-03A3-4?+

ACS350-03E-03A3-4 is rated for 3.3 A nominal output current.

What motor power applies to ACS350-03E-03A3-4?+

ACS350-03E-03A3-4 is rated for 1.1 kW / 1.5 hp motor power.

What supply voltage applies to ACS350-03E-03A3-4?+

ACS350-03E-03A3-4 is specified for a three-phase 380–480 V AC supply.

What are the dimensions and weight of ACS350-03E-03A3-4?+

ACS350-03E-03A3-4 measures 239 mm high, 70 mm wide and 161 mm deep, with a weight of 1.2 kg.

Which protection and braking features are provided by ACS350-03E-03A3-4?+

ACS350-03E-03A3-4 has an IP20 enclosure and an embedded brake chopper.

Which applications suit ACS350-03E-03A3-4?+

ACS350-03E-03A3-4 is intended for general machinery such as material handling, food and beverage, textile, printing, plastics and woodworking equipment.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Documentation and Product References for
ACS350-03E-03A3-4

ABB ACS350-03E-03A3-4 is a compact general machinery drive for 380–480 V, rated 3.3 A and 1.1 kW in frame R1.

ABB ACS350-03E-03A3-4

ABB ACS350-03E-03A3-4 is a compact general machinery drive for 380–480 V, rated 3.3 A and 1.1 kW in frame R1.

DOWNLOAD OFFICIAL ABB MANUAL ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Official source: ABB ACS350 machinery drives user’s manual 3AFE68596106.

ABB ACS350 GENERAL MACHINERY DRIVE ARCHITECTURE

How ACS350-03E-03A3-4 fits into a compact machinery drive system

ACS350-03E-03A3-4 provides compact motor control for 3.3 A, 1.1 kW motor-drive applications on 380–480 V supplies.

ABB · ACS350 MACHINERY DRIVES
ACS350-03E-03A3-4GENERAL MACHINERY DRIVE
OUTPUT CURRENT

3.3 A NOMINAL OUTPUT

Rated for 3.3 A nominal output current in frame R1.

MOTOR POWER

1.1 kW NOMINAL MOTOR POWER

Supports a 1.1 kW nominal motor rating at the 400 V class.

MACHINERY CONTROL

COMPACT DRIVE CONTROL

Compact vector control and an embedded brake chopper support machinery applications.

System relationship: 3-phase 380–480 V supply → ACS350-03E-03A3-4 drive → 1.1 kW AC motor.
APPLICATION AREAS

Where ACS350-03E-03A3-4 is applied

Industrial Motor ControlControls AC motors in industrial machinery and process equipment.
Pumps and FansProvides variable-speed control for small pump and fan systems.
APPLICATION CENTER ACS350-03E-03A3-4 Compact general machinery drive for 3.3 A, 1.1 kW motor applications.
Process LinesProvides precise speed and torque control for conveyors, mixers and process lines.
Material HandlingSupports conveyors and other compact material-handling equipment.
