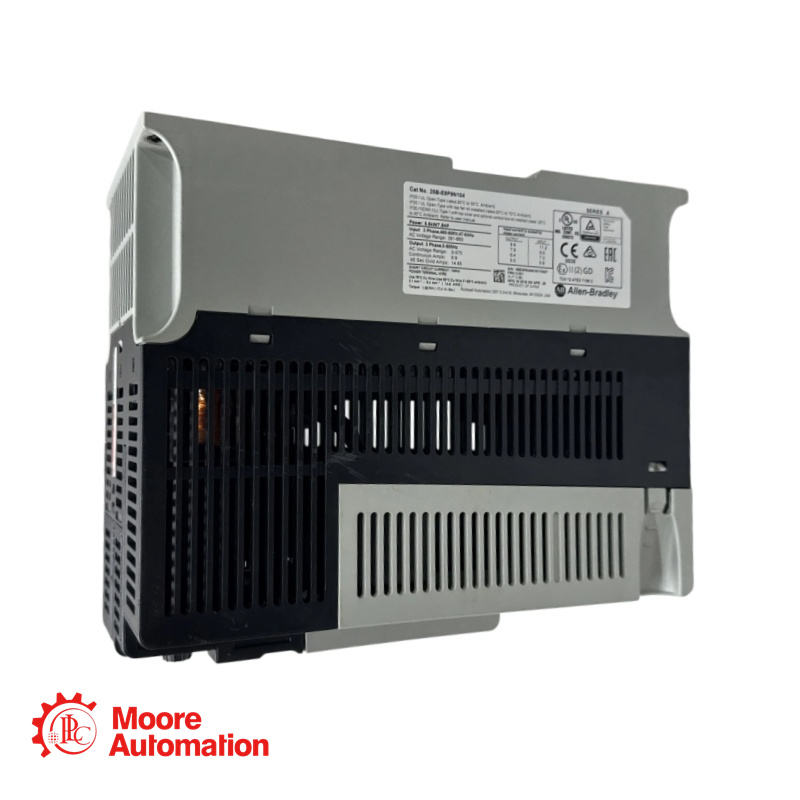

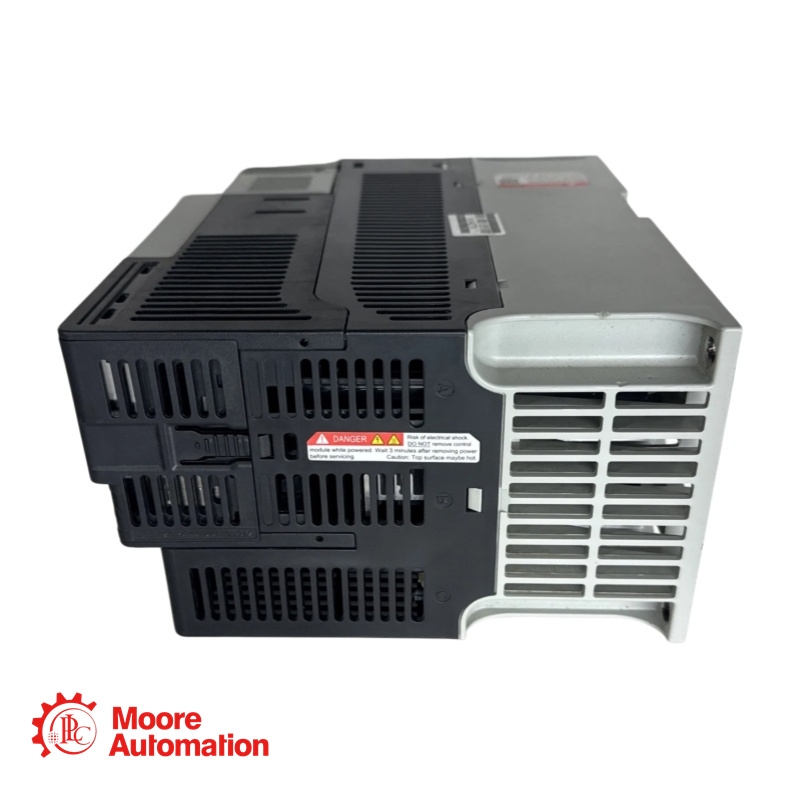

PF 525 5.5kW (7.5Hp) AC Drive
Marca :
PLCNúmero de parte :
25B-E9P9N104Peso :
2.11 kgDimensión :
220.0 mm*109.0 mm*184.0 mmPaís de origen :
USACódigo hs :
8537101190Descripción :
AC Drive
|
25B-E9P9N104 AC Drive |
|
PF 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 9.9 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
Brake IGBT:Included Frequency Rating:50-60 Input Voltage Rating:600V AC Output Current Rating:9.9 A Power Factor:0.98 User Interface:Integral Keypad With Potentiom And LED Display Bulletin Number:PF 525 AC Drive, with Embedded EtherNet/IP and Safety Voltage Class:525...600V AC, 3 Phase Output Current:9.9 Amps Enclosure Type:IP20 NEMA / Open Type Frame Size:Frame C Interface Module:Standard EMC Filtering Options:No Filter
|
|
Get Best Price - Please Contact Frida |
|
|
Phone/Whatsapp: +86 15359408275 |
|
|
Email: sales5@mooreplc.com |
|
|
25B-E9P9N104 AC Drive FAQ |
||
|
What does each code in "25B-E9P9N104" stand for?
· 25B: PF 525 Series. · E: 600V AC Input Voltage (3-Phase, 50/60 Hz). · 9P9: 9.9 Amps Output Current. · N: Open Type Enclosure (IP20 / NEMA Open). · 1: Standard Human Interface Module (HIM Grid with LCD Screen). · 0: No EMC Filter built-in. · 4: Standard Brake IGBT Transistor integrated.
What is the maximum motor power rating for this drive? It is rated for 5.5 kW (7.5 Horsepower / HP) for both Normal Duty (110% overload capacity for 60 seconds) and Heavy Duty (150% overload capacity for 60 seconds) profiles.
Product Series: PF 525 series
The PF 525 series is designed to maximize manufacturing efficiency, streamline system integration, and reduce machine footprint. Operating within a power range of 0.4 kW (0.5 HP) to 22 kW (30 HP) across universal global voltages (100V to 600V), it balances space-saving hardware architecture with sophisticated motor control algorithms.
|
||
|
Related Products |
25B-D013N104: AC Drive, 3-Phase, 13 Amps Output, 5.5 kW / 7.5 HP (Normal Duty/Heavy Duty), Frame C, IP20 / NEMA Open Type, No Filter.
25B-D017N114: AC Drive, 3-Phase, 17 Amps Output, 7.5 kW / 10 HP (Normal Duty/Heavy Duty), Frame C, IP20 / NEMA Open Type, with Integrated EMC Filter.
25B-D4P0N104: AC Drive, 380–480V AC, 3-Phase, 4.0 Amps Output, 1.5 kW / 2 HP (Normal Duty/Heavy Duty), Frame A, IP20 / NEMA Open Type, No Filter.
25-COMM-E2P: Communication Adapter
|
