16353-52 Circuit Board - Siemens

Siemens Circuit Board
16353-52

General Information

Product ID:

16353-52

Country of Origin:

USA

Tariff Number:

8537101190

Condition:

100% new & origin

Description

16353-52

Introduction

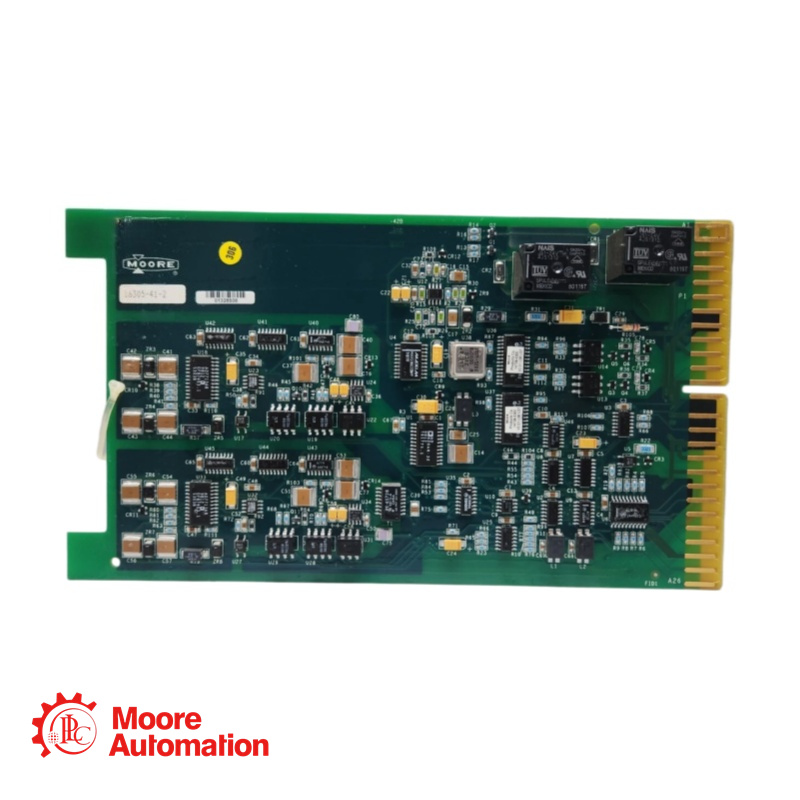

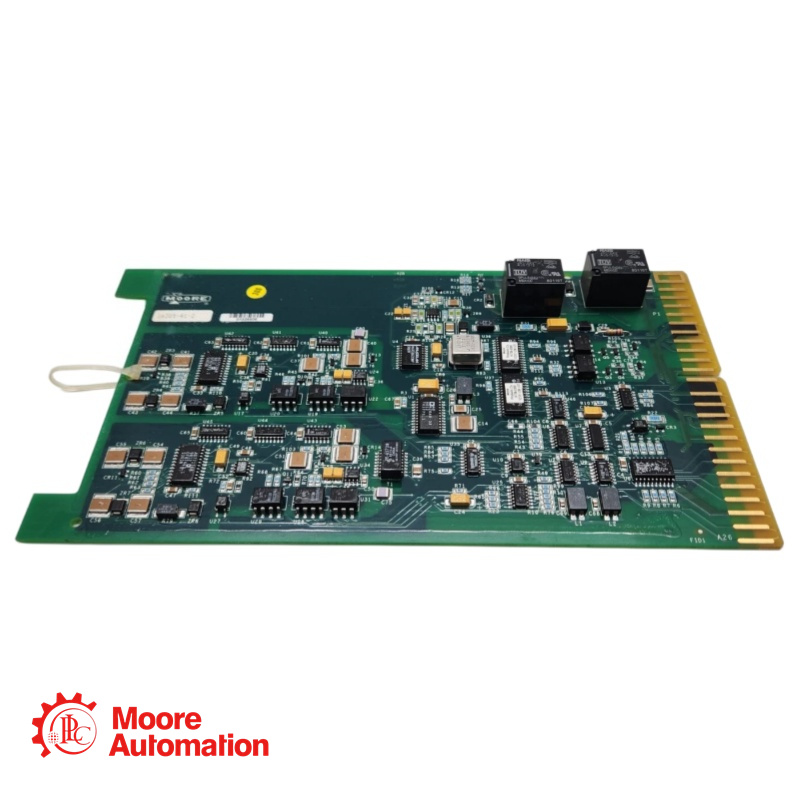

The I/O Expander Board 16353-52 is a factory or field-installable option board for the Moore 353 Process Controller. It enhances the controller's I/O capacity by plugging into the MPU Controller board.

When installed, the I/O Expander board adds significant processing and measurement capabilities, including direct thermocouple, RTD, and frequency inputs. This allows for direct process measurement of temperature and frequency variables, improving accuracy and control.

System

The Moore 353 Process Controller is a powerful and flexible single-loop and multi-loop controller designed for continuous and batch control solutions.
The controller's functionality is based on a modular design. The core processing unit is the MPU Controller Board, which includes basic I/O (3 AI, 2 AO, 3 DI, 2 DO). The I/O Expander Board 16353-52 is a primary expansion module that attaches to the MPU board to increase I/O capacity.

Application

16353-52

◆Temperature Control: The two universal analog inputs (AINU) can be directly wired to thermocouples (Types J, K, T, E, S, R, B, N) or RTDs (DIN, US, JIS), making it ideal for precise temperature measurement and control in heat-treating, furnaces, reactors, and environmental chambers.
◆Flow Measurement: The universal digital inputs (DINU) can measure frequency from turbine or vortex flow meters, providing a scaled analog output representing flow rate.
◆Batch and Sequencing Applications: The relay outputs (ROUT) can directly control pumps, motors, valves, and solenoids for discrete batch operations and sequential logic control.
◆High-Density I/O Requirements: Adding the board provides additional analog and digital points for complex control strategies like cascade control, dual-loop control, or applications with multiple process variables.
◆Signal Conditioning for Non-Standard Inputs: The universal inputs can handle millivolt, ohms, and slidewire inputs, allowing the controller to interface with a wider variety of sensors (e.g., level sensors, position feedback devices, pressure transducers with mV output).
